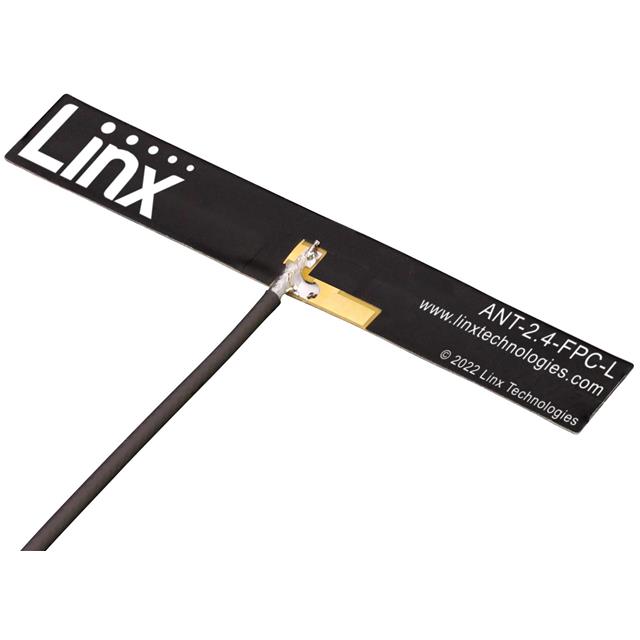

ANT-2.4-FPC-LH50UF

Active

TE Connectivity Linx

ANT 2.4 FPC 45X7 50MM CBL UFL

Search across all available documentation for this part.

Active

TE Connectivity Linx

ANT 2.4 FPC 45X7 50MM CBL UFL

Technical Specifications

Parameters and characteristics commom to parts in this series

ANT 2.4 FPC 45X7 100MM CBL UFL

Part	Number of Bands	Power - Max [Max]	Termination	VSWR	Mounting Type	Applications	Frequency Range [Max]	Frequency Range [Min]	Height (Max)	Height (Max) [Max]	Antenna Type	Features	Features	Gain
TE Connectivity Linx ANT-2.4-FPC-LH100UF	1	2 W	I-PEX MHF1 (U.FL), IPEX MHF1 (U.FL)	1.4	Adhesive	Bluetooth, ISM, Wi-Fi, Zigbee™	2.5 GHz	2.4 GHz	0.1 mm	0.004 in	PCB Trace	Cable	100 mm	6.1 dBi
TE Connectivity Linx ANT-2.4-FPC-LH200UF	1	2 W	IPEX MHF1 (U.FL)	1.4	Adhesive	Bluetooth, ISM, Wi-Fi, Zigbee™	2.5 GHz	2.4 GHz	0.1 mm	0.004 in	PCB Trace	Cable	200 mm	6.1 dBi
TE Connectivity Linx ANT-2.4-FPC-LH100MX	1	2 W		1.4	Adhesive	Bluetooth, ISM, Wi-Fi, Zigbee™	2.5 GHz	2.4 GHz	0.1 mm	0.004 in	PCB Trace	Cable	100 mm	6.1 dBi
TE Connectivity Linx ANT-2.4-FPC-LH50UF	1	2 W	IPEX MHF1 (U.FL)	1.4	Adhesive	Bluetooth, ISM, Wi-Fi, Zigbee™	2.5 GHz	2.4 GHz	0.1 mm	0.004 in	PCB Trace	Cable	50 mm	6.1 dBi
TE Connectivity Linx ANT-2.4-FPC-LH200M4	1	2 W	MHF4	1.4	Adhesive	Bluetooth, ISM, Wi-Fi, Zigbee™	2.5 GHz	2.4 GHz	0.1 mm	0.004 in	PCB Trace	Cable	200 mm	6.1 dBi
TE Connectivity Linx ANT-2.4-FPC-LH50M4	1	2 W	MHF4	1.4	Adhesive	Bluetooth, ISM, Wi-Fi, Zigbee™	2.5 GHz	2.4 GHz	0.1 mm	0.004 in	PCB Trace	Cable	50 mm	6.1 dBi

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	2000	$ 3.35

General part information

RF ANTENNA Bluetooth, ISM, Wi-Fi, Zigbee™ PCB Trace IPEX MHF1 (U.FL) Adhesive
