155240-5303-RB
Active3M

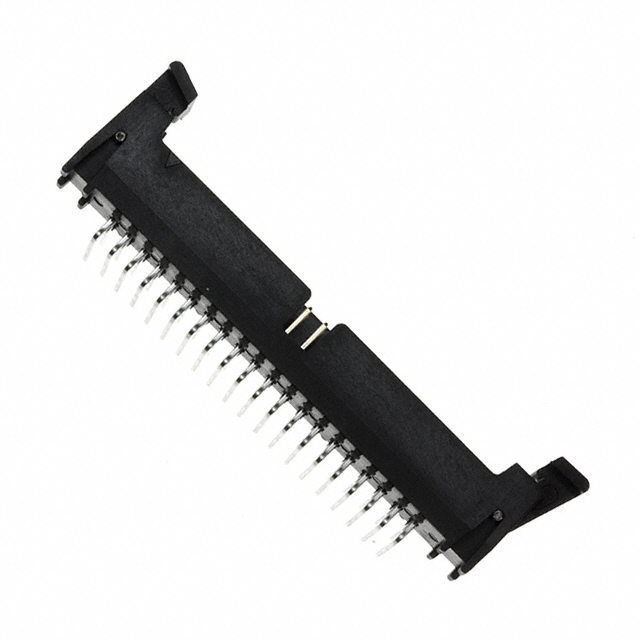

CONN HEADER R/A 40POS 2MM
Deep-Dive with AI
Search across all available documentation for this part.
155240-5303-RB
Active3M
CONN HEADER R/A 40POS 2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 155240-5303-RB | 155240 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 200 µin | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm | 5.08 µm |
| Contact Length - Mating | 0.15 in | 0.15 in |
| Contact Length - Mating | 3.81 mm | 3.81 mm |
| Contact Length - Post | 3.94 mm | 2.84 - 3.94 mm |
| Contact Length - Post | 0.155 " | 0.112 - 0.155 in |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 1.25 A | 1.25 A |
| Fastening Type | Latch Lock/Eject Hooks | Latch Lock/Eject Hooks |
| Features | Keying Slot | Keying Slot |
| Insulation Color | Black | Black |
| Insulation Height | 6.28 mm | 6.28 - 10.8 mm |
| Insulation Height | 0.247 in | 0.247 - 0.425 in |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Surface Mount, Through Hole, Right Angle |
| Number of Positions | 40 | 40 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating [x] | 0.079 in | 0.079 in |
| Pitch - Mating [x] | 2 mm | 2 mm |
| Row Spacing - Mating | 0.079 in | 0.079 in |
| Row Spacing - Mating | 2 mm | 2 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
155240 Series
PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2 MM, 2 ROWS, 40 CONTACTS, THROUGH HOLE STRAIGHT
| Part | Contact Type | Termination | Features | Contact Length - Post | Contact Length - Post | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Pitch - Mating [x] | Pitch - Mating [x] | Contact Shape | Current Rating (Amps) | Style | Connector Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Height | Insulation Height | Row Spacing - Mating | Row Spacing - Mating | Material Flammability Rating | Shrouding | Contact Finish - Post | Number of Rows | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Contact Length - Mating | Contact Length - Mating | Number of Positions Loaded | Contact Material | Insulation Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Male Pin | Solder | Keying Slot | 2.84 mm | 0.112 in | 105 ░C | -55 °C | Through Hole | 0.079 in | 2 mm | Square | 1.25 A | Board to Cable/Wire | Header | 200 µin | 5.08 µm | 0.425 in | 10.8 mm | 0.079 in | 2 mm | UL94 V-0 | Shrouded - 4 Wall | Tin | 2 | Latch Lock/Eject Hooks | 30 Áin | 0.76 Ám | Gold | 0.15 in | 3.81 mm | All | Copper Alloy | Black | 40 | |
Male Pin | Solder | Keying Slot | 105 ░C | -55 °C | Surface Mount | 0.079 in | 2 mm | Square | 1.25 A | Board to Cable/Wire | Header | 200 µin | 5.08 µm | 0.425 in | 10.8 mm | 0.079 in | 2 mm | UL94 V-0 | Shrouded - 4 Wall | Tin | 2 | Latch Lock/Eject Hooks | 30 Áin | 0.76 Ám | Gold | 0.15 in | 3.81 mm | All | Copper Alloy | Black | 40 | |||
Male Pin | Solder | Keying Slot | 3.94 mm | 0.155 " | 105 ░C | -55 °C | Through Hole | 0.079 in | 2 mm | Square | 1.25 A | Board to Cable/Wire | Header | 200 µin | 5.08 µm | 0.425 in | 10.8 mm | 0.079 in | 2 mm | UL94 V-0 | Shrouded - 4 Wall | Tin | 2 | Latch Lock/Eject Hooks | 30 Áin | 0.76 Ám | Gold | 0.15 in | 3.81 mm | All | Copper Alloy | Black | 40 | |
Male Pin | Solder | Keying Slot | 2.84 mm | 0.112 in | 105 ░C | -55 °C | Through Hole, Right Angle | 0.079 in | 2 mm | Square | 1.25 A | Board to Cable/Wire | Header | 200 µin | 5.08 µm | 0.247 in | 6.28 mm | 0.079 in | 2 mm | UL94 V-0 | Shrouded - 4 Wall | Tin | 2 | Latch Lock/Eject Hooks | 30 Áin | 0.76 Ám | Gold | 0.15 in | 3.81 mm | All | Copper Alloy | Black | 40 | |
Male Pin | Solder | Keying Slot | 3.94 mm | 0.155 " | 105 ░C | -55 °C | Through Hole, Right Angle | 0.079 in | 2 mm | Square | 1.25 A | Board to Cable/Wire | Header | 200 µin | 5.08 µm | 0.247 in | 6.28 mm | 0.079 in | 2 mm | UL94 V-0 | Shrouded - 4 Wall | Tin | 2 | Latch Lock/Eject Hooks | 30 Áin | 0.76 Ám | Gold | 0.15 in | 3.81 mm | All | Copper Alloy | Black | 40 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1050 | $ 10.06 | |
Description
General part information
155240 Series
Connector Header Through Hole, Right Angle 40 position 0.079" (2.00mm)
