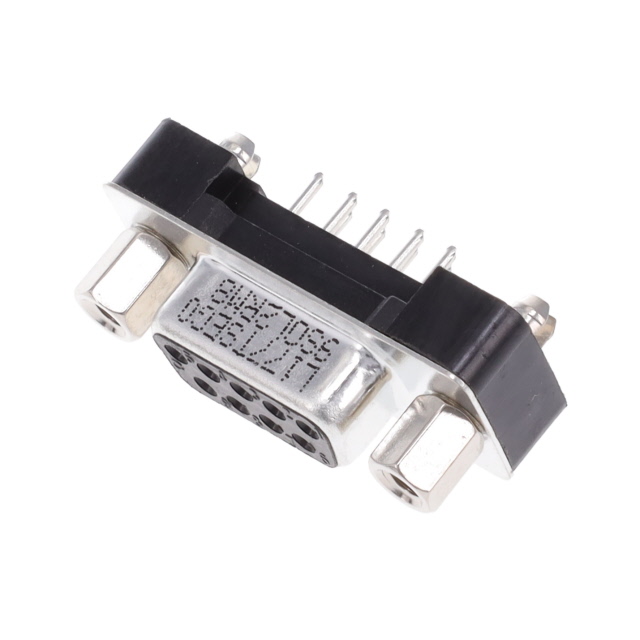

L177TSEG09SOL2RM8

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 9POS VERT SLDR

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 9POS VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	L177TSEG09SOL2RM8

Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Form	Stamped
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Female Screwlock (M3), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	600 V

Part	Number of Rows	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Contact Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Type	Termination	Contact Finish	Material Flammability Rating	Number of Positions	Dielectric Material	Voltage Rating	Flange Feature	Connector Style	Mounting Type	Current Rating (Amps)
Amphenol ICC (Commercial Products) L177TSEG09SOL2RM8	2	Stamped	-55 °C	125 °C	15 µin	0.38 µm	Copper Alloy	Signal	DE E	1	Receptacle Female Sockets	Solder	Gold	UL94 V-0	9	Thermoplastic Glass Filled	600 V	Female Screwlock (M3) Mating Side	D-Sub	Through Hole	5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Sub Receptacle, Female Sockets Connector
