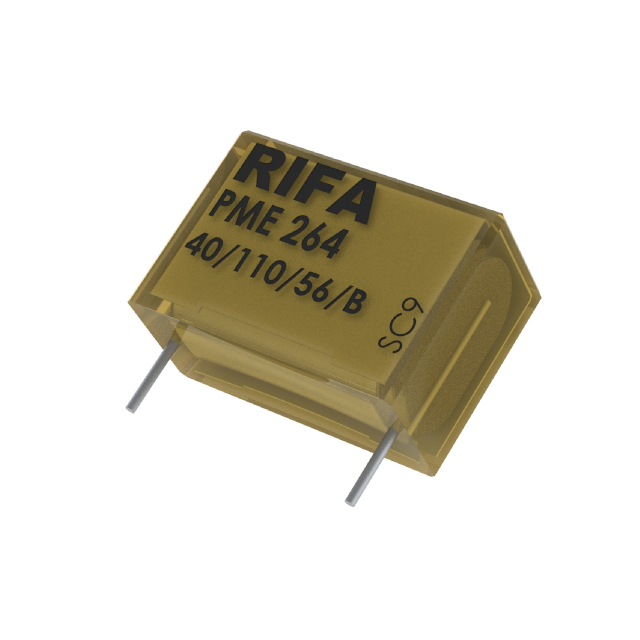

PME264NC5220MR30

Active

KEMET

CAP FILM 0.022UF 20% 1.5KVDC RAD

Search across all available documentation for this part.

Active

KEMET

CAP FILM 0.022UF 20% 1.5KVDC RAD

Technical Specifications

Parameters and characteristics for this part

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Package / Case	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Lead Spacing	Lead Spacing	Mounting Type	Termination	Capacitance	Voltage Rating - DC	Voltage Rating - DC	Ratings	Voltage Rating - AC	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET PME264NE6100KR30	22 mm	0.866 in	EMI RFI Suppression	Radial	Paper Metallized	85 °C	-40 °C	25.4 mm	1 in	Through Hole	PC Pins	100000 pF	1.5 kVDC	1.5 kV	X2	660 V	10 %	1.201 in	0.602 in	30.5 mm	15.3 mm
KEMET PME264NC5220MR04
KEMET PME264NC5220MR30			EMI RFI Suppression	Radial	Paper Metallized	85 °C	-40 °C	20.3 mm	0.799 in	Through Hole	PC Pins	0.022 µF	1.5 kVDC	1.5 kV	X2	660 V	20 %	0.945 in	0.354 in	24 mm	9 mm	15 mm	0.591 "
KEMET PME264NE5470MR30	17 mm	0.669 in	EMI RFI Suppression	Radial	Paper Metallized	85 °C	-40 °C	25.4 mm	1 in	Through Hole	PC Pins				X2	660 V	20 %	1.201 in	0.413 in	30.5 mm	10.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.022 µF Film Capacitor 660V 1500V (1.5kV) Paper, Metallized Radial
