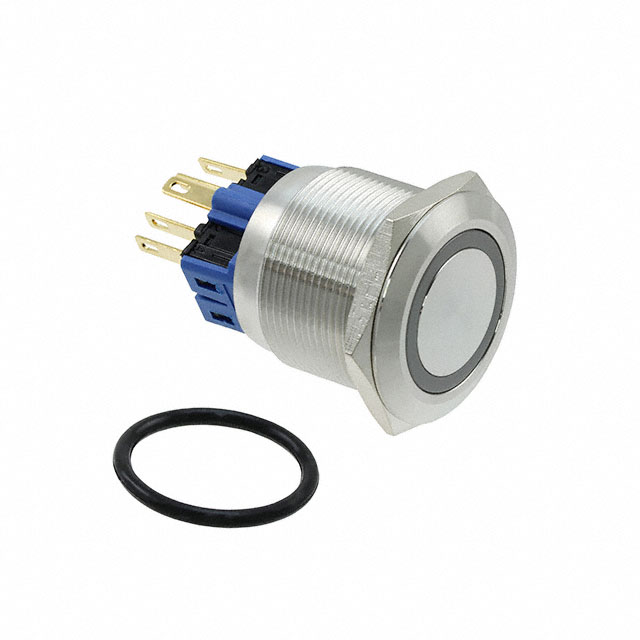

PV8F2U0SS-331

Active

E-Switch

SWITCH: VANDAL RESISTANT; POS: 2; (SPST-NO + SPST-NC) X2; IP65

Deep-Dive with AI

Search across all available documentation for this part.

PV8F2U0SS-331

Active

E-Switch

SWITCH: VANDAL RESISTANT; POS: 2; (SPST-NO + SPST-NC) X2; IP65

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PV8F2U0SS-331

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	4PST-2NO/2NC
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	50000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.8 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	25 mm
Switch Function	On-Off, Off-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	36 VDC

PV8F2 Series

Part	Electrical Life	Type	Mounting Type	Illumination Voltage (Nominal)	Termination Style	Termination Style	Termination Style	Panel Cutout Dimensions [diameter]	Actuator Type	Switch Function	Actuator Marking	Illumination Type, Color	Current Rating (Amps)	Voltage Rating - DC	Mechanical Life	Circuit	Color - Actuator/Cap	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]
E-Switch PV8F2Y0SS-225	50000 Cycles	Anti-Vandal Illuminated	Panel Mount Front	24 V	0.11 in	Quick Connect Solder	2.8 mm	25 mm	Button Flush Round	Off-Mom On-Mom	No Marking	LED Orange	2 A	36 VDC	1000000 Cycles	DPST-NO/NC	Silver	IP65 - Dust Tight Water Resistant	55 °C	-20 C
E-Switch PV8F2T1SS-335	50000 Cycles	Anti-Vandal Illuminated	Panel Mount Front	24 V	0.11 in	Quick Connect Solder	2.8 mm	25 mm	Button Flush Round	Off-On On-Off	No Marking	Green LED	2 A	48 V	1000000 Cycles	DPST-NO/NC	Silver	IP65 - Dust Tight Water Resistant	55 °C	-20 C
E-Switch PV8F2Y0SS-341	50000 Cycles	Anti-Vandal Illuminated	Panel Mount Front	2.8 VDC	0.11 in	Quick Connect Solder	2.8 mm	25 mm	Button Flush Round	Off-Mom On-Mom	No Marking	Blue LED	2 A	36 VDC	1000000 Cycles	DPST-NO/NC	Silver	IP65 - Dust Tight Water Resistant	55 °C	-20 C
E-Switch PV8F2U0SS-331	50000 Cycles	Anti-Vandal Illuminated	Panel Mount Front	2.8 VDC	0.11 in	Quick Connect Solder	2.8 mm	25 mm	Button Flush Round	Off-On On-Off	No Marking	Green LED	2 A	36 VDC	1000000 Cycles	4PST-2NO/2NC	Silver	IP65 - Dust Tight Water Resistant	55 °C	-20 C
E-Switch PV8F2V0SS-211	50000 Cycles	Anti-Vandal Illuminated	Panel Mount Front	1.8 VDC	0.11 in	Quick Connect Solder	2.8 mm	25 mm	Button Flush Round	Off-Mom On-Mom	No Marking	LED Red	2 A	36 VDC	1000000 Cycles	4PST-2NO/2NC	Silver	IP65 - Dust Tight Water Resistant	55 °C	-20 C
E-Switch PV8F2V0SS-345	50000 Cycles	Anti-Vandal Illuminated	Panel Mount Front	24 V	0.11 in	Quick Connect Solder	2.8 mm	25 mm	Button Flush Round	Off-Mom On-Mom	No Marking	Blue LED	2 A	36 VDC	1000000 Cycles	4PST-2NO/2NC	Silver	IP65 - Dust Tight Water Resistant	55 °C	-20 C
E-Switch PV8F2U0SS-311	50000 Cycles	Anti-Vandal Illuminated	Panel Mount Front	1.8 VDC	0.11 in	Quick Connect Solder	2.8 mm	25 mm	Button Flush Round	Off-On On-Off	No Marking	LED Red	2 A	36 VDC	1000000 Cycles	4PST-2NO/2NC	Silver	IP65 - Dust Tight Water Resistant	55 °C	-20 C
E-Switch PV8F2Y0SS-3K4	50000 Cycles	Anti-Vandal Illuminated	Panel Mount Front	12 VDC	0.11 in	Quick Connect Solder	2.8 mm	25 mm	Button Flush Round	Off-Mom On-Mom	No Marking	LED Green/Orange	2 A	36 VDC	1000000 Cycles	DPST-NO/NC	Silver	IP65 - Dust Tight Water Resistant	55 °C	-20 C
E-Switch PV8F2Y0SS-314	50000 Cycles	Anti-Vandal Illuminated	Panel Mount Front	12 VDC	0.11 in	Quick Connect Solder	2.8 mm	25 mm	Button Flush Round	Off-Mom On-Mom	No Marking	LED Red	2 A	36 VDC	1000000 Cycles	DPST-NO/NC	Silver	IP65 - Dust Tight Water Resistant	55 °C	-20 C
E-Switch PV8FWY0SS-335	50000 Cycles	Anti-Vandal Illuminated	Panel Mount Front	24 V		Wire Leads		25 mm	Button Flush Round	Off-Mom On-Mom	No Marking	Green LED	2 A	48 V	1000000 Cycles	DPST-NO/NC	Silver	IP65 - Dust Tight Water Resistant	55 °C	-20 C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.08
		20	$ 14.61
		40	$ 14.45
TME	N/A	1	$ 30.71
		20	$ 30.61

Description

General part information

PV8F2 Series

Pushbutton Switch 4PST-2NO/2NC Anti-Vandal, Illuminated Panel Mount, Front
