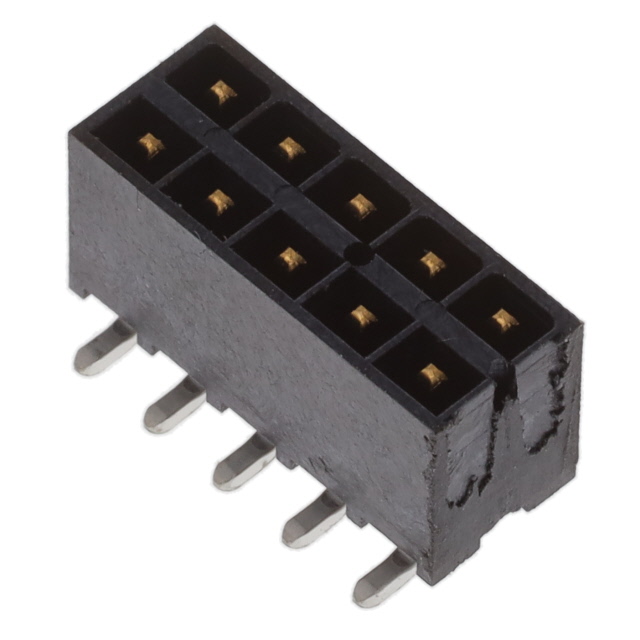

IPT1-105-01-S-D-VS-A

Active

Samtec Inc.

CONN HEADER SMD 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet IPT1 Datasheet +1

IPT1-105-01-S-D-VS-A

Active

Samtec Inc.

CONN HEADER SMD 10POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet IPT1 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPT1-105-01-S-D-VS-A

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	3.94 mm
Contact Length - Mating	0.155 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.3 A
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	6.35 mm
Insulation Height	0.25 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Termination	Solder
Voltage Rating	775 VAC, 1095 VDC

IPT1-105 Series

Power to the Board .100" Mini Mate Isolated Power Connector Terminal Strip

Part	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Voltage Rating	Current Rating (Amps)	Contact Finish - Post	Number of Positions	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Number of Rows	Contact Type	Connector Type	Contact Finish - Mating	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Material Flammability Rating	Contact Shape	Contact Material	Insulation Material	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Insulation Color	Insulation Height	Insulation Height	Features	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. IPT1-105-01-S-D-RA	0.09 "	2.29 mm	0.1 in	2.54 mm	775 VAC 1095 VDC	2.3 A	Tin	10	3.94 mm	0.155 in	-55 °C	125 °C	Push-Pull	2	Male Pin	Header	Gold	Solder	2.54 mm	0.1 in	Shrouded - 4 Wall	UL94 V-0	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	All	30 Áin	0.76 Ám	Through Hole Right Angle	Black
Samtec Inc. IPT1-105-01-L-D-VS-A-K			0.1 in	2.54 mm	775 VAC 1095 VDC	2.3 A	Tin	10	3.94 mm	0.155 in	-55 °C	125 °C	Push-Pull	2	Male Pin	Header	Gold	Solder	2.54 mm	0.1 in	Shrouded - 4 Wall	UL94 V-0	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	All	10 çin	0.25 çm	Surface Mount	Black	6.35 mm	0.25 in	Board Guide Pick and Place
Samtec Inc. IPT1-105-01-SM-D-VS			0.1 in	2.54 mm	775 VAC 1095 VDC	2.3 A	Tin	10	3.94 mm	0.155 in	-55 °C	125 °C	Push-Pull	2	Male Pin	Header	Gold	Solder	2.54 mm	0.1 in	Shrouded - 4 Wall	UL94 V-0	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	All	30 Áin	0.76 Ám	Surface Mount	Black	6.35 mm	0.25 in
Samtec Inc. IPT1-105-01-L-D-RA-PL	0.09 "	2.29 mm	0.1 in	2.54 mm	775 VAC 1095 VDC	2.3 A	Tin	10	3.94 mm	0.155 in	-55 °C	125 °C	Push-Pull	2	Male Pin	Header	Gold	Solder	2.54 mm	0.1 in	Shrouded - 4 Wall	UL94 V-0	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)		10 çin	0.25 çm	Through Hole Right Angle	Black				9
Samtec Inc. IPT1-105-01-H-D-RA	0.09 "	2.29 mm	0.1 in	2.54 mm	775 VAC 1095 VDC	2.3 A	Gold	10	3.94 mm	0.155 in	-55 °C	125 °C	Push-Pull	2	Male Pin	Header	Gold	Solder	2.54 mm	0.1 in	Shrouded - 4 Wall	UL94 V-0	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	All	30 Áin	0.76 Ám	Through Hole Right Angle	Black					3 µin	0.076 µm
Samtec Inc. IPT1-105-01-T-D-DH-A			0.1 in	2.54 mm	775 VAC 1095 VDC	2.3 A	Tin	10	3.94 mm	0.155 in	-55 °C	105 ░C	Push-Pull	2	Male Pin	Header		Solder	2.54 mm	0.1 in	Shrouded - 4 Wall	UL94 V-0	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	All			Surface Mount Right Angle	Black			Board Guide
Samtec Inc. IPT1-105-01-L-D-VS-LC-K			0.1 in	2.54 mm	775 VAC 1095 VDC	2.3 A	Tin	10	3.94 mm	0.155 in	-55 °C	125 °C	Push-Pull	2	Male Pin	Header	Gold	Solder	2.54 mm	0.1 in	Shrouded - 4 Wall	UL94 V-0	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	All	10 çin	0.25 çm	Surface Mount	Black	6.35 mm	0.25 in	Board Lock Pick and Place
Samtec Inc. IPT1-105-01-S-D-VS-LC-K			0.1 in	2.54 mm	775 VAC 1095 VDC	2.3 A	Tin	10	3.94 mm	0.155 in	-55 °C	125 °C	Push-Pull	2	Male Pin	Header	Gold	Solder	2.54 mm	0.1 in	Shrouded - 4 Wall	UL94 V-0	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	All	30 Áin	0.76 Ám	Surface Mount	Black	6.35 mm	0.25 in	Board Lock Pick and Place
Samtec Inc. IPT1-105-01-L-D-VS-K-TR			0.1 in	2.54 mm	775 VAC 1095 VDC	2.3 A	Tin	10	3.94 mm	0.155 in	-55 °C	125 °C	Push-Pull	2	Male Pin	Header	Gold	Solder	2.54 mm	0.1 in	Shrouded - 4 Wall	UL94 V-0	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	All	10 çin	0.25 çm	Surface Mount	Black	6.35 mm	0.25 in	Pick and Place
Samtec Inc. IPT1-105-01-S-D-VS-A			0.1 in	2.54 mm	775 VAC 1095 VDC	2.3 A	Tin	10	3.94 mm	0.155 in	-55 °C	125 °C	Push-Pull	2	Male Pin	Header	Gold	Solder	2.54 mm	0.1 in	Shrouded - 4 Wall	UL94 V-0	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	All	30 Áin	0.76 Ám	Surface Mount	Black	6.35 mm	0.25 in	Board Guide

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.69
		25	$ 4.24
		50	$ 3.94
		100	$ 3.75
		500	$ 3.52
