SML-LX1610UWC/A

Active

Lumex Opto/Components Inc.

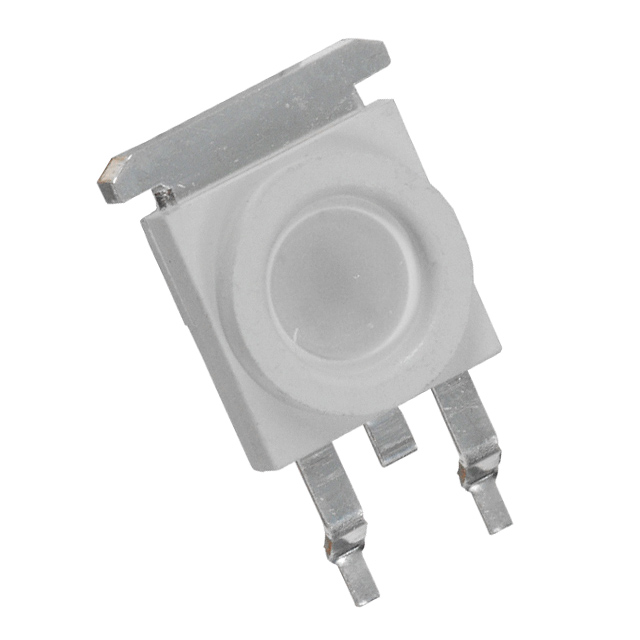

LED TITANBRITE COOL WHITE 6000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SML-LX1610UWC/A

Active

Lumex Opto/Components Inc.

LED TITANBRITE COOL WHITE 6000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.96
		10	$ 4.94
		100	$ 3.90
		500	$ 3.48
		1000	$ 3.36
		2000	$ 3.25

Description

General part information

SML-LX1610 Series

LED Lighting TitanBrite™ White, Cool 6000K (3000K ~ 9000K) 3.5V 350mA 110° TO-252-3, DPAK (2 Leads + Tab), SC-63

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SML-LX1610UWC/A	SML-LX1610 Series

CCT (K)	6000 K	6000 K
CCT (K) [Max]	9000 K	9000 K
CCT (K) [Min]	3000 K	3000 K
Color	Cool, White	Red, Green, Blue, Cool, White
Current - Max	-	300 mA
Current - Max	-	350 mA
Current - Max	-	350 mA
Current - Max [Max]	350 mA	350 mA
Current - Test	350 mA	350 mA
Current - Test	-	350 mA
Current - Test	-	350 mA
Current - Test	-	300 mA
Flux @ 25°C, Current - Test	30 lm	30 lm
Height - Seated (Max) [Max] [z]	0.13 "	0.13 "
Height - Seated (Max) [Max] [z]	3.3 mm	3.3 mm
Lumens/Watt @ Current - Test	24 lm/W	19 - 24 lm/W
Lumens/Watt @ Current - Test	-	40 lm/W
Lumens/Watt @ Current - Test	-	20 lm/W
Lumens/Watt @ Current - Test	-	7 lm/W
Luminous Flux @ Current/Temperature	-	25 lm
Luminous Flux @ Current/Temperature	-	8 lm
Luminous Flux @ Current/Temperature	-	25 lm
Luminous Flux @ Current/Temperature	-	20 lm
Mounting Type	Surface Mount	Surface Mount
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3	SC-63, DPAK (2 Leads + Tab), TO-252-3
Size / Dimension [x]	10.6 mm	8.5 - 10.6 mm
Size / Dimension [x]	0.417 in	0.335 - 0.417 "
Size / Dimension [y]	10 mm	8.5 - 10 mm
Size / Dimension [y]	0.394 in	0.335 - 0.394 in
Supplier Device Package	-	SMD
Viewing Angle	110 °	110 °
Voltage - Forward (Vf) (Typ)	3.5 V	2.1 - 3.5 V
Voltage - Forward (Vf) (Typ)	-	2.1 V
Voltage - Forward (Vf) (Typ)	-	3.5 V
Voltage - Forward (Vf) (Typ)	-	3.5 V
Wavelength	-	470nm Blue, 626nm Red, 525nm Green
Wavelength	-	470 - 625 nm

SML-LX1610 Series

LED TITANBRITE RGB 626/525/470

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Viewing Angle	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Wavelength	Current - Max [custom]	Current - Max [custom]	Current - Max [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Package / Case	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Supplier Device Package	Color	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	CCT (K)	CCT (K) [Min]	CCT (K) [Max]	Current - Max [Max]	Flux @ 25°C, Current - Test	Voltage - Forward (Vf) (Typ)	Current - Test	Lumens/Watt @ Current - Test	Wavelength	Luminous Flux @ Current/Temperature
Lumex Opto/Components Inc. SML-LX1610RGBW/A	0.13 "	3.3 mm	Surface Mount	110 °	0.335 "	8.5 mm	0.335 in	8.5 mm	25 lm	8 lm	25 lm	470nm Blue, 525nm Green, 626nm Red	300 mA	350 mA	350 mA	350 mA	350 mA	300 mA	DPAK (2 Leads + Tab), SC-63, TO-252-3	2.1 V	3.5 V	3.5 V	SMD	Blue, Green, Red	40 lm/W	20 lm/W	7 lm/W
Lumex Opto/Components Inc. SML-LX1610UWC/A	0.13 "	3.3 mm	Surface Mount	110 °	0.417 in	10 mm	0.394 in	10.6 mm											DPAK (2 Leads + Tab), SC-63, TO-252-3					Cool, White				6000 K	3000 K	9000 K	350 mA	30 lm	3.5 V	350 mA	24 lm/W
Lumex Opto/Components Inc. SML-LX1610SIC/A	0.13 "	3.3 mm	Surface Mount	110 °	0.335 "	8.5 mm	0.335 in	8.5 mm											DPAK (2 Leads + Tab), SC-63, TO-252-3				SMD	Red							350 mA		2.1 V	350 mA		625 nm
Lumex Opto/Components Inc. SML-LX1610USBC/A	0.13 "	3.3 mm	Surface Mount	110 °	0.335 "	8.5 mm	0.335 in	8.5 mm											DPAK (2 Leads + Tab), SC-63, TO-252-3				SMD	Blue							350 mA		3 V	350 mA	19 lm/W	470 nm	20 lm
