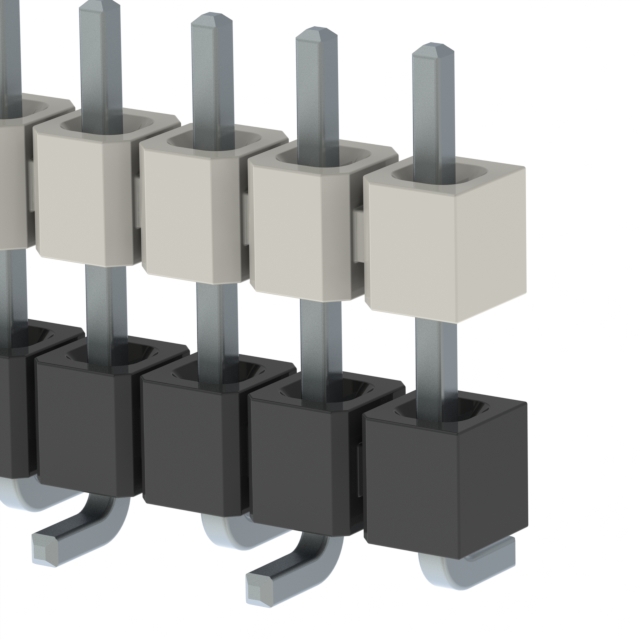

HW-08-16-T-S-300-SM-TR

Active

Samtec Inc.

CONN HDR 8POS 0.1 STACK SMD TIN

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 8POS 0.1 STACK SMD TIN

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish - Post (Mating)	Row Spacing [x]	Row Spacing	Termination	Number of Rows	Color	Length - Stack Height [x]	Length - Stack Height [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Number of Positions	Mounting Type	Pitch [x]	Pitch [x]	Number of Positions	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. HW-08-16-F-D-250-SM-A	Gold	0.1 in	2.54 mm	Solder	2	Black	0.25 in	6.35 mm	3 Áin	0.076 Ám	0.38 in	9.65 mm	3.302 mm	0.13 in	16	Surface Mount	2.54 mm	0.1 in
Samtec Inc. HW-08-16-T-S-300-SM-TR	Tin			Solder	1	Black	0.3 in	7.62 mm			0.38 in	9.65 mm				Surface Mount	2.54 mm	0.1 in	8
Samtec Inc. HW-08-16-G-D-355-SM	Gold	0.1 in	2.54 mm	Solder	2	Black	0.355 in	9.017 mm	10 Áin	0.25 Ám	0.38 in	9.65 mm	0.635 mm	0.025 in	16	Surface Mount	2.54 mm	0.1 in
Samtec Inc. HW-08-16-F-D-285-SM	Gold	0.1 in	2.54 mm	Solder	2	Black			3 Áin	0.076 Ám	0.38 in	9.65 mm	2.413 mm	0.095 in	16	Surface Mount	2.54 mm	0.1 in		7.239 mm	0.285 in
Samtec Inc. HW-08-16-L-D-250-SM	Gold	0.1 in	2.54 mm	Solder	2	Black	0.25 in	6.35 mm	10 Áin	0.25 Ám	0.38 in	9.65 mm	3.302 mm	0.13 in	16	Surface Mount	2.54 mm	0.1 in
Samtec Inc. HW-08-16-F-D-275-SM-A	Gold	0.1 in	2.54 mm	Solder	2	Black	0.275 in	6.985 mm	3 Áin	0.076 Ám	0.38 in	9.65 mm	2.667 mm	0.105 in	16	Surface Mount	2.54 mm	0.1 in
Samtec Inc. HW-08-16-G-D-290-SM-A	Gold	0.1 in	2.54 mm	Solder	2	Black	0.29 in	7.366 mm	10 Áin	0.25 Ám	0.38 in	9.65 mm	2.286 mm	0.09 in	16	Surface Mount	2.54 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	275	$ 0.96

General part information

8 Position Header Spacer Connector 0.100" (2.54mm) Tin Surface Mount
