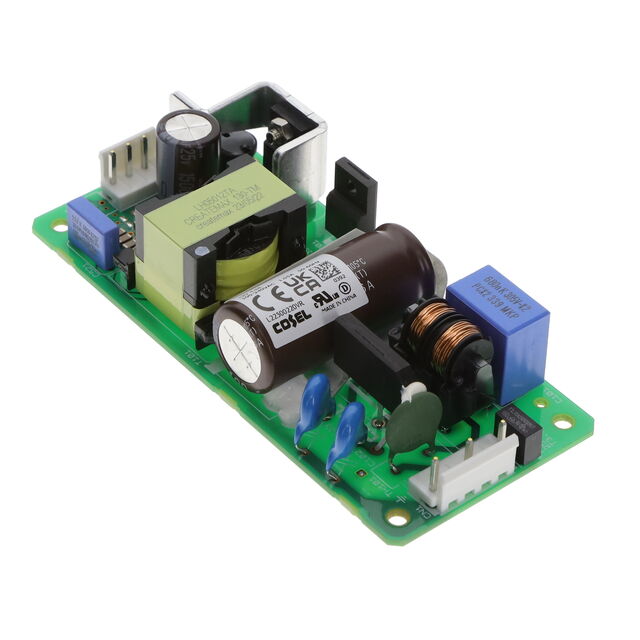

LHA50F-12

Active

Cosel USA, Inc.

AC/DC CONVERTER 12V 52W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LHA50F-12

Active

Cosel USA, Inc.

AC/DC CONVERTER 12V 52W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LHA50F-12

Applications	ITE (Commercial)
Approval Agency	cURus, CE, DEMKO, UL
Current - Output 1	4.3 A
Efficiency	90.5 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Power (Watts)	52 W
Size / Dimension [x]	4.41 "
Size / Dimension [x]	112 mm
Size / Dimension [y]	50 mm
Size / Dimension [y]	1.97 "
Size / Dimension [z]	0.93 in
Size / Dimension [z]	23.6 mm
Standard Number	62368-1
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

LHA50F Series

Part	Power (Watts)	Mounting Type	Approval Agency	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Features	Type	Current - Output 1	Applications	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1	Voltage - Isolation	Standard Number	Efficiency	Number of Outputs
Cosel USA, Inc. LHA50F-5	40 W	Chassis Mount	CE cURus DEMKO UL	-10 °C	158 °F	Adjustable Output Universal Input	Open Frame	8 A	ITE (Commercial)	0.93 in	23.6 mm	4.41 "	50 mm	112 mm	1.97 "	5 V	3000 V	62368-1	86.5 %	1
Cosel USA, Inc. LHA50F-15	53 W	Chassis Mount	CE cURus DEMKO UL	-10 °C	158 °F	Adjustable Output Universal Input	Open Frame	3.5 A	ITE (Commercial)	0.93 in	23.6 mm	4.41 "	50 mm	112 mm	1.97 "	15 V	3000 V	62368-1	89 %	1
Cosel USA, Inc. LHA50F-12	52 W	Chassis Mount	CE cURus DEMKO UL	-10 °C	158 °F	Adjustable Output Universal Input	Open Frame	4.3 A	ITE (Commercial)	0.93 in	23.6 mm	4.41 "	50 mm	112 mm	1.97 "	12 V	3000 V	62368-1	90.5 %	1
Cosel USA, Inc. LHA50F-24	50 W	Chassis Mount	CE cURus DEMKO UL	-10 °C	158 °F	Adjustable Output Universal Input	Open Frame	2.1 A	ITE (Commercial)	0.93 in	23.6 mm	4.41 "	50 mm	112 mm	1.97 "	24 V	3000 V	62368-1	89 %	1
Cosel USA, Inc. LHA50F-48	53 W	Chassis Mount	CE cURus DEMKO UL	-10 °C	158 °F	Adjustable Output Universal Input	Open Frame	1.1 A	ITE (Commercial)	0.93 in	23.6 mm	4.41 "	50 mm	112 mm	1.97 "	48 V	3000 V	62368-1	90 %	1
Cosel USA, Inc. LHA50F-3R3-Y	26 W	Chassis Mount	CE cURus DEMKO UL	-10 °C	158 °F	Adjustable Output Universal Input	Open Frame	8 A	ITE (Commercial)	0.93 in	23.6 mm	4.41 "	50 mm	112 mm	1.97 "	3.3 V	3000 V	62368-1	83.5 %	1
Cosel USA, Inc. LHA50F-36	50 W	Chassis Mount	CE cURus DEMKO UL	-10 °C	158 °F	Adjustable Output Universal Input	Open Frame	1.4 A	ITE (Commercial)	0.93 in	23.6 mm	4.41 "	50 mm	112 mm	1.97 "	36 V	3000 V	62368-1	90 %	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 36.25
		5	$ 35.18
		10	$ 34.11
		25	$ 33.05
		50	$ 31.98
		100	$ 30.92
		250	$ 29.85

Description

General part information

LHA50F Series

Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC Input

Documents

Technical documentation and resources
