XBP9B-XCUT-001

Active

Digi

RF TXRX MOD ISM<1GHZU.FL TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMap Your Digi XBee IoT Network with Digi XCTU XBee™ Family Chart +1

XBP9B-XCUT-001

Active

Digi

RF TXRX MOD ISM<1GHZU.FL TH

Deep-Dive with AI

DocumentsMap Your Digi XBee IoT Network with Digi XCTU XBee™ Family Chart +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XBP9B-XCUT-001

Antenna Type	Antenna Not Included, U.FL
Current - Receiving	26 mA
Current - Transmitting	215 mA
Data Rate	10 kbps
Frequency	900 MHz
Modulation	FHSS
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Output	24 dBm
RF Family/Standard	General ISM < 1GHz
Sensitivity	-109 dBm
Serial Interfaces	UART
Utilized IC / Part	ADF7023
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.4 V

XBP9B Series

Part	Mounting Type	Power - Output	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Modulation	Current - Transmitting	Current - Receiving	Serial Interfaces	Utilized IC / Part	Memory Size	Package / Case	Antenna Type	Frequency	Data Rate	Sensitivity	RF Family/Standard
Digi XBP9B-DMWT-012	Through Hole	24 dBm	2.4 V	3.6 V	85 °C	-40 °C	FHSS	229 mA	44 mA	SPI UART	ADF7023	2 kB 32 kB	Module	Integrated Wire Antenna	900 MHz	200 kbps	-110 dBm	General ISM < 1GHz
Digi XBP9B-DPWT-011	Through Hole	24 dBm	2.4 V	3.6 V	85 °C	-40 °C	FHSS	229 mA	44 mA	SPI UART	ADF7023	2 kB 32 kB	Module	Integrated Wire Antenna	900 MHz	10 kbps	-110 dBm	General ISM < 1GHz
Digi XBP9B-XCUT-001	Through Hole	24 dBm	2.4 V	3.6 V	85 °C	-40 °C	FHSS	215 mA	26 mA	UART	ADF7023		Module	Antenna Not Included U.FL	900 MHz	10 kbps	-109 dBm	General ISM < 1GHz
Digi XBP9B-DPUT-021	Through Hole	24 dBm	2.4 V	3.6 V	85 °C	-40 °C	FHSS	229 mA	44 mA	SPI UART	ADF7023	2 kB 32 kB	Module	Antenna Not Included U.FL	920 MHz	10 kbps	-110 dBm	General ISM < 1GHz
Digi XBP9B-DPST-011	Through Hole	24 dBm	2.4 V	3.6 V	85 °C	-40 °C	FHSS	229 mA	44 mA	SPI UART	ADF7023	2 kB 32 kB	Module	Antenna Not Included RP-SMA	900 MHz	10 kbps	-110 dBm	General ISM < 1GHz
Digi XBP9B-XCST-022	Through Hole	24 dBm	2.4 V	3.6 V	85 °C	-40 °C	FHSS	215 mA	26 mA	UART	ADF7023		Module	Antenna Not Included RP-SMA	920 MHz	20 kbps	-107 dBm	General ISM < 1GHz
Digi XBP9B-XCST-001	Through Hole	24 dBm	2.4 V	3.6 V	85 °C	-40 °C	FHSS	215 mA	26 mA	UART	ADF7023		Module	Antenna Not Included RP-SMA	900 MHz	10 kbps	-109 dBm	General ISM < 1GHz
Digi XBP9B-XCWT-002	Through Hole	24 dBm	2.4 V	3.6 V	85 °C	-40 °C	FHSS	215 mA	26 mA	UART	ADF7023		Module	Integrated Wire Antenna	900 MHz	20 kbps	-107 dBm	General ISM < 1GHz
Digi XBP9B-DMWT-022	Through Hole	24 dBm	2.4 V	3.6 V	85 °C	-40 °C	FHSS	229 mA	44 mA	SPI UART	ADF7023	2 kB 32 kB	Module	Integrated Wire Antenna	900 MHz	200 kbps	-110 dBm	General ISM < 1GHz
Digi XBP9B-DMWT-042	Through Hole	24 dBm	2.4 V	3.6 V	85 °C	-40 °C	FHSS	229 mA	44 mA	SPI UART	ADF7023	2 kB 32 kB	Module	Integrated Wire Antenna	900 MHz	200 kbps	-110 dBm	General ISM < 1GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 53.85

Description

General part information

XBP9B Series

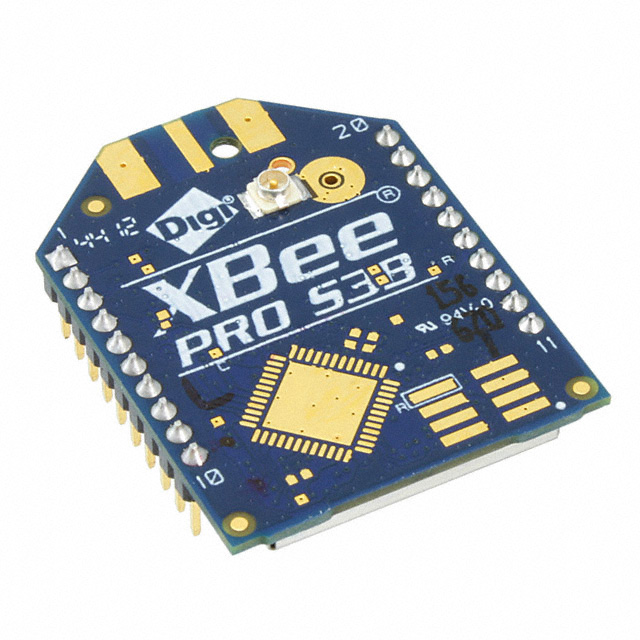

General ISM < 1GHz Transceiver Module 900MHz Antenna Not Included, U.FL Through Hole

XBP9B-XCUT-001

Deep-Dive with AI

XBP9B-XCUT-001

Deep-Dive with AI
