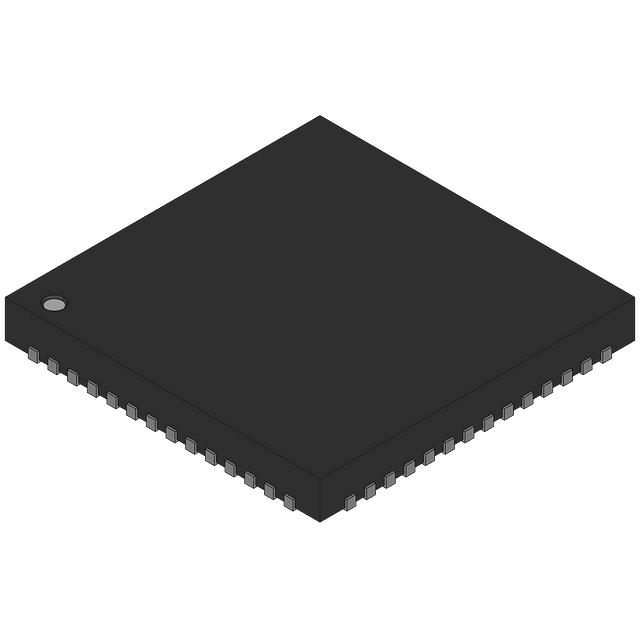

UPD78F8043K8(R)-9B4-AX

Active

Renesas Electronics Corporation

IC MCU 16BIT 128KB FLASH

Search across all available documentation for this part.

Active

Renesas Electronics Corporation

IC MCU 16BIT 128KB FLASH

Technical Specifications

Parameters and characteristics for this part

IC MCU 16BIT 128KB FLASH

Part	RAM Size	Connectivity	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Speed	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Core Processor	Number of I/O	Peripherals	Data Converters [custom]	Data Converters [custom]	Program Memory Size	Program Memory Type	Package / Case	Oscillator Type	Core Size
Renesas Electronics Corporation UPD78F8043K8(R)-9B4-AX	7K x 8	CSI, I2C, LINbus, UART/USART	5.5 V	3 V	20 MHz	Surface Mount	85 °C	-40 °C	78K/0	23	LVD, POR, PWM, WDT	10 b	6	128 KB	FLASH	56-WFQFN Exposed Pad	Internal	16-Bit

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	18	$ 17.61

General part information

78K/0 78K/UPD78F80xx Microcontroller IC 16-Bit 20MHz 128KB (128K x 8) FLASH

Technical documentation and resources

No documents available
