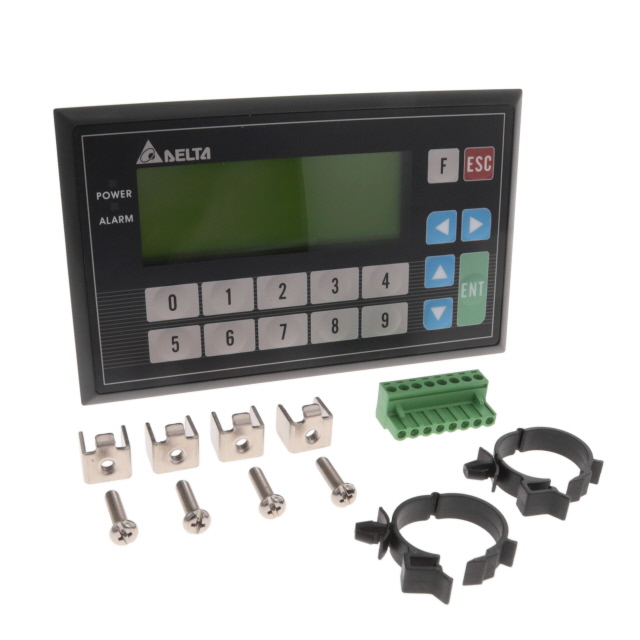

TP04P-32TP1R

Delta Electronics/Industrial Automation

4-LINE TEXT PANEL HMI WITH BUILT

Search across all available documentation for this part.

Delta Electronics/Industrial Automation

4-LINE TEXT PANEL HMI WITH BUILT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TP04P-32TP1R	TP04 Series

Approval Agency	UL, CE	UL, CE
Communications	RS-485, USB	RS-485, USB
Expandable	False	False
Features	Battery Backup (Lithium)	Battery Backup (Lithium)
Ingress Protection	IP65 - Dust Tight, Water Resistant; NEMA 4	IP65 - Dust Tight, Water Resistant; NEMA 4
Memory Size	1024 KB	1024 KB
Number of Inputs and Type	-	4
Number of Inputs and Type	-	8
Number of Inputs and Type [custom]	16	16
Number of Inputs and Type [custom]	Digital	Digital
Number of Outputs and Type	-	8
Number of Outputs and Type	-	2
Number of Outputs and Type [custom]	16	16
Number of Outputs and Type [custom]	Relay	Relay
Software	TPEditor	TPEditor
Voltage - Supply	24 VDC	24 VDC

4-LINE TEXT PANEL HMI WITH BUILT

Part	Software	Ingress Protection	Approval Agency	Expandable	Communications	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Features	Memory Size	Voltage - Supply	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]
Delta Electronics/Industrial Automation TP04P-32TP1R	TPEditor	IP65 - Dust Tight, Water Resistant; NEMA 4	CE, UL		RS-485, USB	16	Relay	16	Digital	Battery Backup (Lithium)	1024 KB	24 VDC
Delta Electronics/Industrial Automation TP04P-22XA1R	TPEditor	IP65 - Dust Tight, Water Resistant; NEMA 4	CE, UL		RS-485, USB					Battery Backup (Lithium)	1024 KB	24 VDC	8	2	4	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Programmable Logic Controller (PLC) Panel Mount 24VDC
