R112186000
ActiveRadiall USA, Inc.

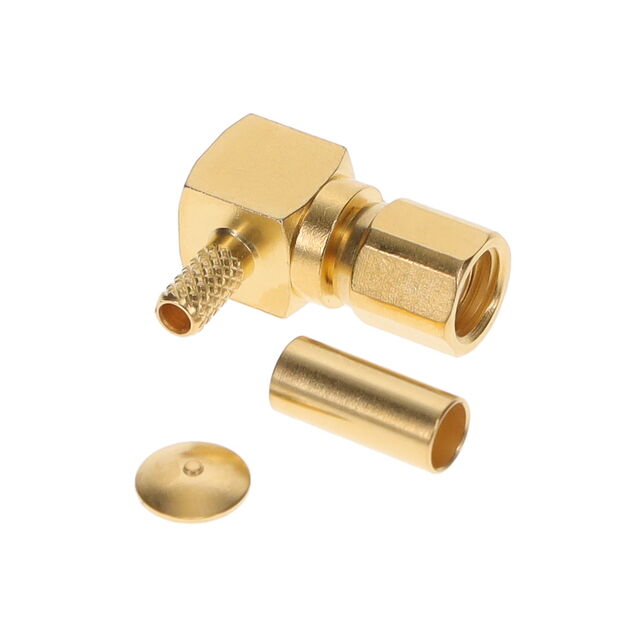

RF SMC CONNECTOR, FEMALE, CABLE MOUNT, CRIMP TERMINAL, PLUG
Deep-Dive with AI
Search across all available documentation for this part.
R112186000
ActiveRadiall USA, Inc.
RF SMC CONNECTOR, FEMALE, CABLE MOUNT, CRIMP TERMINAL, PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R112186000 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | 179, RG-174, 316 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMC |
| Connector Type | Plug, Female Socket |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 10 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Includes | 1 Connector, 1 Ferrule |
| Insertion Loss | 0.5 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.16 | |
| 10 | $ 15.73 | |||
| 25 | $ 14.91 | |||
| 50 | $ 14.70 | |||
| 100 | $ 12.97 | |||
| 300 | $ 12.10 | |||
| 500 | $ 11.84 | |||
Description
General part information
R11218 Series
SMC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Crimp
