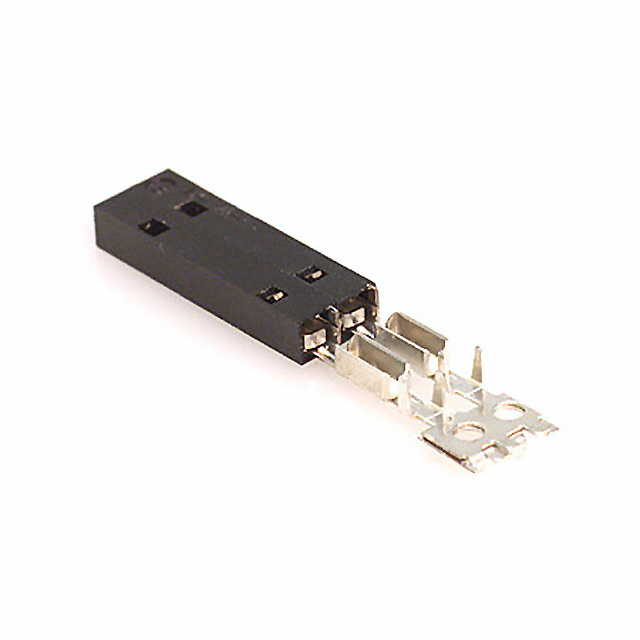

103976-1
ActiveTE Connectivity AMP Connectors
CONN RCPT 2POS IDC 22-26AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
103976-1
ActiveTE Connectivity AMP Connectors
CONN RCPT 2POS IDC 22-26AWG GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 103976-1 | 103976 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Type | Female Socket | Female Socket |
| Features | Closed End | Closed End |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 2 | 2 - 12 |
| Number of Rows | 1 | 1 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
| Wire Type | Ribbon Cable | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 2310 | $ 1.06 | |
103976 Series
CONN RCPT 7POS IDC 22-26AWG GOLD
| Part | Color | Mounting Type | Wire Type | Contact Finish Thickness | Contact Finish Thickness | Wire Gauge [Min] | Wire Gauge [Max] | Connector Type | Cable Termination | Number of Rows | Features | Contact Type | Contact Finish | Pitch [x] | Pitch [x] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 103976-6 | Black | Free Hanging (In-Line) | Ribbon Cable | 0.76 Ám | 30 Áin | 22 AWG | 26 AWG | Receptacle | IDC | 1 | Closed End | Female Socket | Gold | 2.54 mm | 0.1 in | 7 |
TE Connectivity AMP Connectors 103976-7 | Black | Free Hanging (In-Line) | Ribbon Cable | 0.76 Ám | 30 Áin | 22 AWG | 26 AWG | Receptacle | IDC | 1 | Closed End | Female Socket | Gold | 2.54 mm | 0.1 in | 8 |
TE Connectivity AMP Connectors 6-103976-1 | Black | Free Hanging (In-Line) | Ribbon Cable | 0.76 Ám | 30 Áin | 22 AWG | 26 AWG | Receptacle | IDC | 1 | Closed End | Female Socket | Gold | 2.54 mm | 0.1 in | 12 |
TE Connectivity AMP Connectors 5-103976-6 | Black | Free Hanging (In-Line) | Ribbon Cable | 0.76 Ám | 30 Áin | 22 AWG | 26 AWG | Receptacle | IDC | 1 | Closed End | Female Socket | Gold | 2.54 mm | 0.1 in | 7 |
TE Connectivity AMP Connectors 5-103976-9 | Black | Free Hanging (In-Line) | Ribbon Cable | 0.76 Ám | 30 Áin | 22 AWG | 26 AWG | Receptacle | IDC | 1 | Closed End | Female Socket | Gold | 2.54 mm | 0.1 in | 10 |
TE Connectivity AMP Connectors 5-103976-8 | Black | Free Hanging (In-Line) | Ribbon Cable | 0.76 Ám | 30 Áin | 22 AWG | 26 AWG | Receptacle | IDC | 1 | Closed End | Female Socket | Gold | 2.54 mm | 0.1 in | 9 |
TE Connectivity AMP Connectors 103976-1 | Black | Free Hanging (In-Line) | Ribbon Cable | 0.76 Ám | 30 Áin | 22 AWG | 26 AWG | Receptacle | IDC | 1 | Closed End | Female Socket | Gold | 2.54 mm | 0.1 in | 2 |
TE Connectivity AMP Connectors 5-103976-3 | Black | Free Hanging (In-Line) | Ribbon Cable | 0.76 Ám | 30 Áin | 22 AWG | 26 AWG | Receptacle | IDC | 1 | Closed End | Female Socket | Gold | 2.54 mm | 0.1 in | 4 |
Description
General part information
103976 Series
2 Position Rectangular Receptacle Connector IDC Gold 22-26 AWG
