EM14R1A-R20-L008N
ActiveBourns Inc.

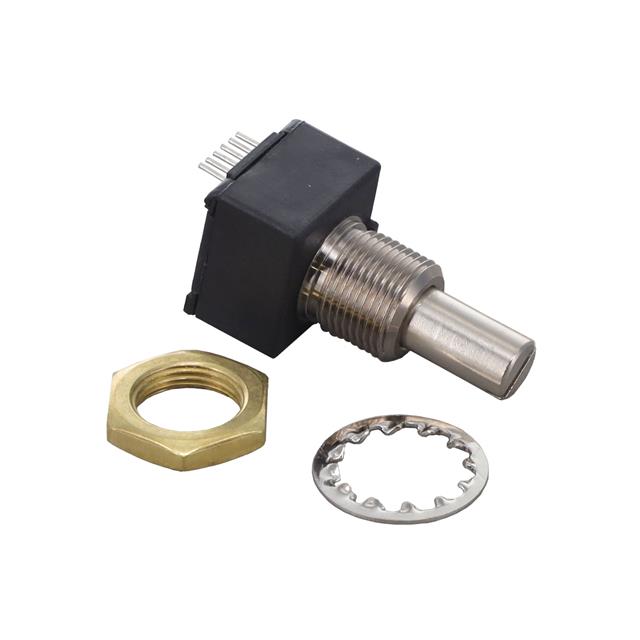

ROTARY OPTICAL ENCODER - 14MM /TRAY PACKAGING
Deep-Dive with AI
Search across all available documentation for this part.
EM14R1A-R20-L008N
ActiveBourns Inc.
ROTARY OPTICAL ENCODER - 14MM /TRAY PACKAGING
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EM14R1A-R20-L008N |
|---|---|
| Actuator Type | 6mm Dia Slotted End |
| Built in Switch | False |
| Detent | True |
| Encoder Type | Optical |
| Mounting Type | PCB Through Hole, Panel |
| Orientation | Right Angle |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 8 |
| Rotational Life (Cycles Min) | 1M |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EM14R1A Series
Rotary Encoder Optical 8 Quadrature (Incremental) Right Angle
