Q 27,0-JXS11-12-10/20-T1-FU-LF

Active

Jauch Quartz

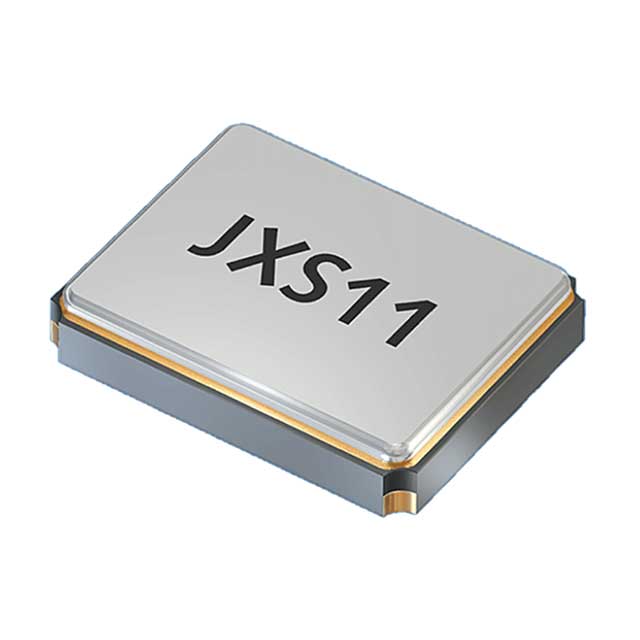

CRYSTAL 27.0000MHZ 12PF SMD

Search across all available documentation for this part.

Active

Jauch Quartz

CRYSTAL 27.0000MHZ 12PF SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q 27,0-JXS11-12-10/20-T1-FU-LF	JXS11 Series

ESR (Equivalent Series Resistance)	90 Ohm	60 - 90 Ohm
Frequency	27 MHz	27 - 50 MHz
Frequency Stability	20 ppm	10 - 20 ppm
Frequency Tolerance	10 ppm	10 ppm
Height - Seated (Max) [Max]	0.016 in	0.016 in
Height - Seated (Max) [Max]	0.4 mm	0.4 mm
Load Capacitance	12 pF	8 - 12 pF
Mounting Type	Surface Mount	Surface Mount
Operating Mode	Fundamental	Fundamental
Operating Temperature [Max]	85 °C	70 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - -20 C
Package / Case	4-SMD, No Lead	4-SMD, No Lead
Size / Dimension [x]	1.6 mm	1.6 mm
Size / Dimension [x]	0.063 in	0.063 in
Size / Dimension [y]	0.047 in	0.047 in
Size / Dimension [y]	1.2 mm	1.2 mm
Type	MHz Crystal	MHz Crystal

CRYSTAL 27.0000MHZ 12PF SMD

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Mode	Load Capacitance	Frequency Stability	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Frequency	Frequency Tolerance	ESR (Equivalent Series Resistance)	Type	Package / Case
Jauch Quartz Q 27,0-JXS11-12-10/10-FU-LF	0.016 in	0.4 mm	0.047 in	1.2 mm	1.6 mm	0.063 in	Fundamental	12 pF	10 ppm	-20 C	70 °C	Surface Mount	27 MHz	10 ppm	90 Ohm	MHz Crystal	4-SMD, No Lead
Jauch Quartz Q 50,0-JXS11-12-10/10-FU-LF	0.016 in	0.4 mm	0.047 in	1.2 mm	1.6 mm	0.063 in	Fundamental	12 pF	10 ppm	-20 C	70 °C	Surface Mount	50 MHz	10 ppm	60 Ohms	MHz Crystal	4-SMD, No Lead
Jauch Quartz Q 27,0-JXS11-12-10/20-T1-FU-LF	0.016 in	0.4 mm	0.047 in	1.2 mm	1.6 mm	0.063 in	Fundamental	12 pF	20 ppm	-40 °C	85 °C	Surface Mount	27 MHz	10 ppm	90 Ohm	MHz Crystal	4-SMD, No Lead
Jauch Quartz Q 30,0-JXS11-8-10/10-FU-LF	0.016 in	0.4 mm	0.047 in	1.2 mm	1.6 mm	0.063 in	Fundamental	8 pF	10 ppm	-20 C	70 °C	Surface Mount	30 MHz	10 ppm	80 Ohm	MHz Crystal	4-SMD, No Lead
Jauch Quartz Q 40,0-JXS11-10-10/10-FU-LF	0.016 in	0.4 mm	0.047 in	1.2 mm	1.6 mm	0.063 in	Fundamental	10 pF	10 ppm	-20 C	70 °C	Surface Mount	40 MHz	10 ppm	60 Ohms	MHz Crystal	4-SMD, No Lead
Jauch Quartz Q 50,0-JXS11-10-10/10-FU-LF	0.016 in	0.4 mm	0.047 in	1.2 mm	1.6 mm	0.063 in	Fundamental	10 pF	10 ppm	-20 C	70 °C	Surface Mount	50 MHz	10 ppm	60 Ohms	MHz Crystal	4-SMD, No Lead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.87
	Digi-Reel®	1	$ 0.87
	Tape & Reel (TR)	1000	$ 0.56

General part information

27 MHz ±10ppm Crystal 12pF 90 Ohms 4-SMD, No Lead
