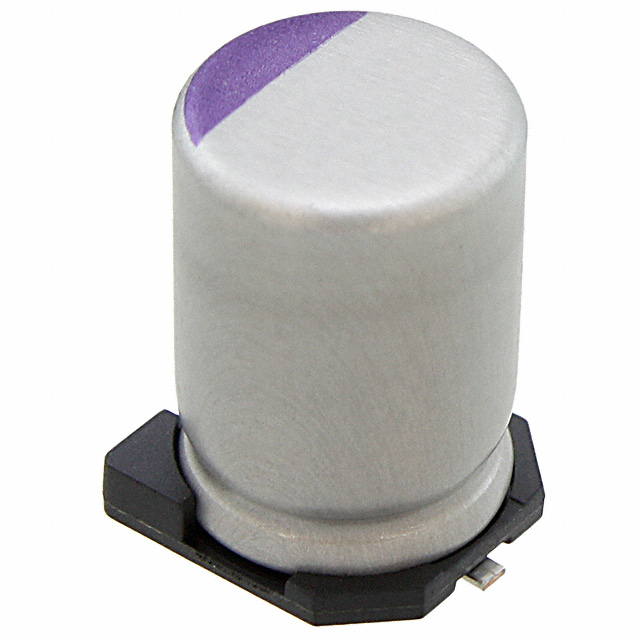

35SVPF82M - OS-CON, SVPF 12mm

35SVPF82M

Active
Panasonic Industrial Automation Sales

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, OS-CON, 82 ΜF, 35 V, RADIAL CAN - SMD, 0.02 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsOne Page Summary ENManufacturer Catalogue EN+2
35SVPF82M - OS-CON, SVPF 12mm

35SVPF82M

Active
Panasonic Industrial Automation Sales

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, OS-CON, 82 ΜF, 35 V, RADIAL CAN - SMD, 0.02 OHM

Deep-Dive with AI

DocumentsOne Page Summary ENManufacturer Catalogue EN+2

Technical Specifications

Parameters and characteristics for this part

Specification35SVPF82M
ApplicationsGeneral Purpose
Capacitance82 µF
ESR (Equivalent Series Resistance)20 mOhms
Height - Seated (Max) [Max] [z]12 mm
Height - Seated (Max) [Max] [z]0.472 "
Lifetime @ Temp.5000 Hrs
Mounting TypeSurface Mount
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Package / CaseRadial, Can - SMD
Ripple Current @ High Frequency4 A
Ripple Current @ Low Frequency200 mA
Size / Dimension [diameter]0.315 "
Size / Dimension [diameter]8 mm
Surface Mount Land Size [x]0.327 "
Surface Mount Land Size [x]8.3 mm
Surface Mount Land Size [y]8.3 mm
Surface Mount Land Size [y]0.327 in
Tolerance20 %
TypePolymer
Voltage - Rated35 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.82
10$ 1.26
50$ 1.04
100$ 0.81
Digi-Reel® 1$ 1.82
10$ 1.26
50$ 1.04
100$ 0.81
Tape & Reel (TR) 400$ 0.71
800$ 0.64
1200$ 0.64
2000$ 0.64
2800$ 0.63
4000$ 0.62
LCSCPiece 1$ 0.87
10$ 0.74
30$ 0.67
100$ 0.62
400$ 0.58
800$ 0.56
NewarkEach (Supplied on Cut Tape) 1$ 1.75
10$ 0.83
25$ 0.77
50$ 0.72
100$ 0.67

Description

General part information

35SVPF Series

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, OS-CON, 82 ΜF, 35 V, RADIAL CAN - SMD, 0.02 OHM
