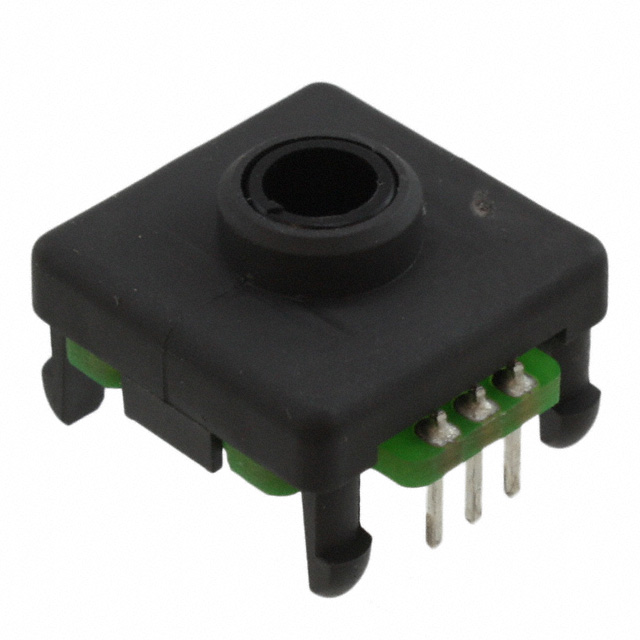

ESD0D-S00-GC0006L
ActiveBourns Inc.
ROTARY ENCODER MECHANICAL 6PPR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ESD0D-S00-GC0006L
ActiveBourns Inc.
ROTARY ENCODER MECHANICAL 6PPR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ESD0D-S00-GC0006L |
|---|---|
| Built in Switch | False |
| Detent | True |
| Encoder Type | Mechanical |
| Mounting Type | PCB, Surface Mount |
| Orientation | Vertical |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 6 |
| Rotational Life (Cycles Min) | 200K |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.28 | |
| 5 | $ 6.26 | |||
| 10 | $ 5.86 | |||
| 25 | $ 5.38 | |||
| 40 | $ 5.14 | |||
| 80 | $ 4.82 | |||
| 230 | $ 4.35 | |||
| 440 | $ 4.28 | |||
Description
General part information
ESD0D Series
Rotary Encoder Mechanical 6 Quadrature (Incremental) Vertical
