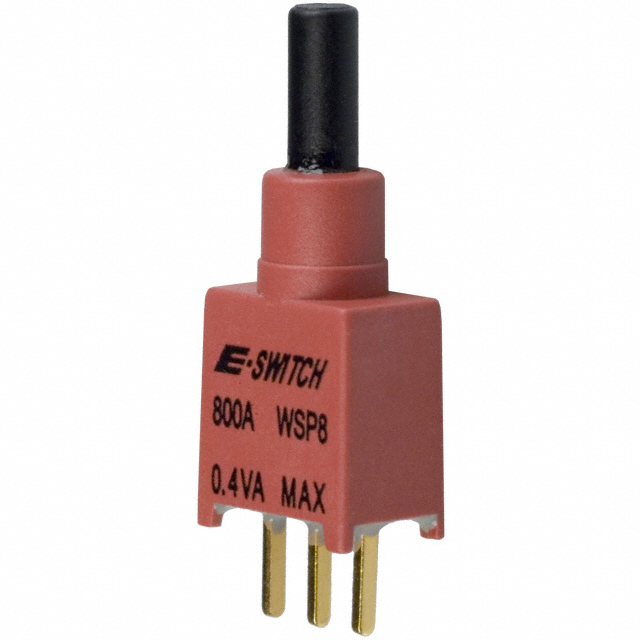

800AWSP8M2QE

Active

E-Switch

SWITCH PUSHBUTTON SPDT 1A 120V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSHBUTTON SPDT 1A 120V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Current Rating (Amps)	Type	Termination Style	Actuator Marking	Mounting Type	Color - Actuator/Cap	Switch Function	Circuit	Ingress Protection	Features	Actuator Type	Voltage Rating - AC
E-Switch 800AWSP8M6QE	-30 ░C	85 °C	50000 Cycles	1 A	Standard	PC Pin	No Marking	Through Hole Right Angle	Black	On-Mom	SPDT	IP67 - Dust Tight Waterproof	Epoxy Sealed Terminals	Round Plunger	120 V
E-Switch 800AWSP8M2QE	-30 ░C	85 °C	50000 Cycles	1 A	Standard	PC Pin	No Marking	Through Hole	Black	On-Mom	SPDT	IP67 - Dust Tight Waterproof	Epoxy Sealed Terminals	Round Plunger	120 V
E-Switch 800AWSP8M7QE	-30 ░C	85 °C	50000 Cycles	1 A	Standard	PC Pin	No Marking	Right Angle Through Hole Vertical	Black	On-Mom	SPDT	IP67 - Dust Tight Waterproof	Epoxy Sealed Terminals	Round Plunger	120 V
E-Switch 800AWSP8VS2QE	-30 ░C	85 °C	50000 Cycles	1 A	Standard	PC Pin	No Marking	Through Hole	Black	On-Mom	SPDT	IP67 - Dust Tight Waterproof	Epoxy Sealed Terminals	Round Plunger	120 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Through Hole
