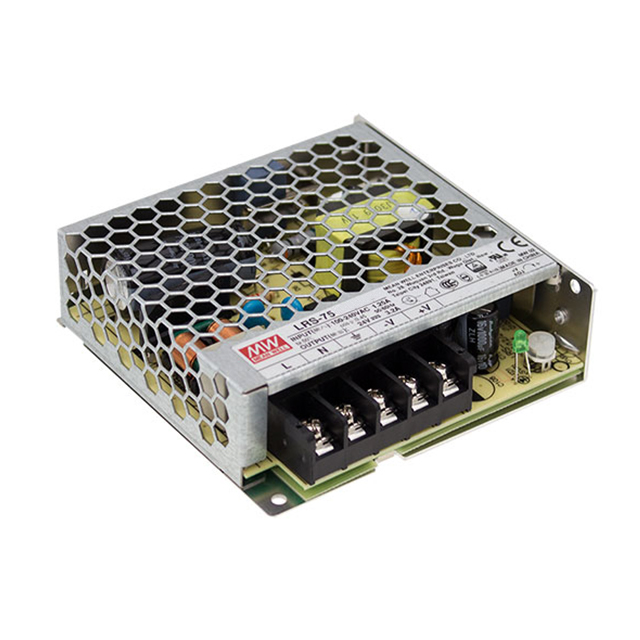

Specification	LRS-75-36

Applications	ITE (Commercial), Household Appliances
Approval Agency	CE, CCC, CB, cURus, TUV
Current - Output 1	2.1 A
Efficiency	91.5 %
Features	Universal Input, Adjustable Output
Minimum Load Required	No
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-30 °C
Power (Watts)	76 W
Size / Dimension Height	1.18 in
Size / Dimension Length	3.9 in
Size / Dimension Width	3.82 in
Type	Enclosed
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	85 VAC
Voltage - Input (DC) Maximum	373 VDC
Voltage - Input (DC) Minimum	120 V
Voltage - Isolation	4000 Vpk
Voltage - Output 1	36 V

LRS-75 Series

Part	Mounting Type	Power (Watts)	Applications	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Output 1	Approval Agency	Features	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Voltage - Input (DC) Maximum	Voltage - Input (AC) Maximum	Voltage - Input (AC) Minimum	Voltage - Input (DC) Minimum	Current - Output 1	Type	Efficiency	Voltage - Isolation	Number of Outputs	Minimum Load Required
MEAN WELL USA Inc. LRS-75-24	Chassis Mount	77 W	Household Appliances ITE (Commercial)	70 °C	-30 °C	24 V	CB CCC CE cURus TUV	Adjustable Output Universal Input	3.82 in	1.18 in	3.9 in	373 VDC	264 V	85 VAC	120 V	3.2 A	Enclosed	90 %	4000 Vpk	1	No
MEAN WELL USA Inc. LRS-75-12	Chassis Mount	72 W	Household Appliances ITE (Commercial)	70 °C	-30 °C	12 V	CB CCC CE cURus TUV	Adjustable Output Universal Input	3.82 in	1.18 in	3.9 in	373 VDC	264 V	85 VAC	120 V	6 A	Enclosed	89 %	4000 Vpk	1	No
MEAN WELL USA Inc. LRS-75-15	Chassis Mount	75 W	Household Appliances ITE (Commercial)	70 °C	-30 °C	15 V	CB CCC CE cURus TUV	Adjustable Output Universal Input	3.82 in	1.18 in	3.9 in	373 VDC	264 V	85 VAC	120 V	5 A	Enclosed	89 %	4000 Vpk	1	No
MEAN WELL USA Inc. LRS-75-36	Chassis Mount	76 W	Household Appliances ITE (Commercial)	70 °C	-30 °C	36 V	CB CCC CE cURus TUV	Adjustable Output Universal Input	3.82 in	1.18 in	3.9 in	373 VDC	264 V	85 VAC	120 V	2.1 A	Enclosed	91.5 %	4000 Vpk	1	No
MEAN WELL USA Inc. LRS-75-5	Chassis Mount	70 W	Household Appliances ITE (Commercial)	70 °C	-30 °C	5 V	CB CCC CE cURus TUV	Adjustable Output Universal Input	3.82 in	1.18 in	3.9 in	373 VDC	264 V	85 VAC	120 V	14 A	Enclosed	86.5 %	4000 Vpk	1	No
MEAN WELL USA Inc. LRS-75-48	Chassis Mount	77 W	Household Appliances ITE (Commercial)	70 °C	-30 °C	48 V	CB CCC CE cURus TUV	Adjustable Output Universal Input	3.82 in	1.18 in	3.9 in	373 VDC	264 V	85 VAC	120 V	1.6 A	Enclosed	91.5 %	4000 Vpk	1	No

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

LRS-75-36 | Datasheet
