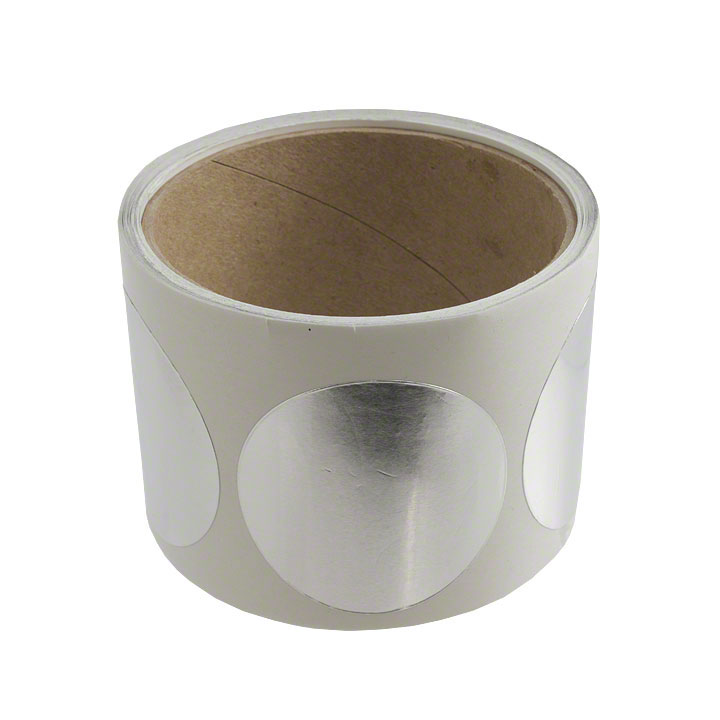

1170CIR-2(100)

Active

3M (TC)

RF EMI SHIELDING SHEET 2" 100PK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1170CIR-2(100)

Active

3M (TC)

RF EMI SHIELDING SHEET 2" 100PK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2	$ 129.31

Description

General part information

1170 Series

RF EMI Shielding Sheet 1170 Aluminum Foil Conductive, Single Sided 2.000" (50.80mm) X X 0.003" (0.08mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1170CIR-2(100)	1170 Series

Adhesive	Conductive, Single Sided	Conductive, Single Sided
Length	-	0.5 - 54 in
Length	-	12.7 - 101.6 mm
Length	-	1 in
Length	-	25.4 mm
Material	Aluminum Foil	Aluminum Foil
Operating Temperature [Max]	130 °C	130 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shape	Circular	Square, Circular, Rectangular, Roll
Shelf Life	60 Months	60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Thickness - Overall	0.003 "	0.003 "
Thickness - Overall	0.08 mm	0.08 mm
Type	Shielding Sheet	Shielding Sheet, Shielding Tape
Width	-	25.4 - 38.1 mm
Width	-	0.75 in
Width	-	19.05 mm
Width [x]	2 in	1 - 2 in
Width [x]	50.8 mm	50.8 mm

1170 Series

RF SHLDING SHEET 0.5"X0.5" 250PK

Part	Shape	Thickness - Overall	Thickness - Overall	Shelf Life	Type	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Length	Length	Shelf Life Start	Operating Temperature [Min]	Operating Temperature [Max]	Material	Adhesive	Width [x]	Width [x]	Width	Length [x]	Length [x]	Width [y]	Width [y]
3M (TC) 1170SQ-0.5(250)	Square	0.003 "	0.08 mm	60 Months	Shielding Sheet	27 °C, 80 °F	10 °C	0.5 in	12.7 mm	Date of Manufacture	-40 °C	130 °C	Aluminum Foil	Conductive, Single Sided
3M (TC) 1170CIR-2(100)	Circular	0.003 "	0.08 mm	60 Months	Shielding Sheet	27 °C, 80 °F	10 °C			Date of Manufacture	-40 °C	130 °C	Aluminum Foil	Conductive, Single Sided	2 in	50.8 mm
3M (TC) 3M 1170 1" X 3"-100	Rectangular	0.003 "	0.08 mm	60 Months	Shielding Sheet	27 °C, 80 °F	10 °C	3 in	76.2 mm	Date of Manufacture	-40 °C	130 °C	Aluminum Foil	Conductive, Single Sided	1 in		25.4 mm
3M (TC) 1170SQ-1.5(100)	Square	0.003 "	0.08 mm	60 Months	Shielding Sheet	27 °C, 80 °F	10 °C	1.5 "	38.1 mm	Date of Manufacture	-40 °C	130 °C	Aluminum Foil	Conductive, Single Sided	1.5 in		38.1 mm
3M (TC) 3M 1170 1" X 4"-100	Rectangular	0.003 "	0.08 mm	60 Months	Shielding Sheet	27 °C, 80 °F	10 °C	4 in	101.6 mm	Date of Manufacture	-40 °C	130 °C	Aluminum Foil	Conductive, Single Sided	1 in		25.4 mm
3M (TC) 1170-0.5-3(100)	Rectangular	0.003 "	0.08 mm	60 Months	Shielding Sheet	27 °C, 80 °F	10 °C	3 in	76.2 mm	Date of Manufacture	-40 °C	130 °C	Aluminum Foil	Conductive, Single Sided
3M (TC) 1170SQ-1(250)	Square	0.003 "	0.08 mm	60 Months	Shielding Sheet	27 °C, 80 °F	10 °C			Date of Manufacture	-40 °C	130 °C	Aluminum Foil	Conductive, Single Sided	1 in		25.4 mm	1 in	25.4 mm
3M (TC) 1170CIR-0.75(250)	Circular	0.003 "	0.08 mm	60 Months	Shielding Sheet	27 °C, 80 °F	10 °C			Date of Manufacture	-40 °C	130 °C	Aluminum Foil	Conductive, Single Sided						0.75 in	19.05 mm
3M (TC) 3M 1170 CIRCLE-0.5"-250	Circular	0.003 "	0.08 mm	60 Months	Shielding Sheet	27 °C, 80 °F	10 °C			Date of Manufacture	-40 °C	130 °C	Aluminum Foil	Conductive, Single Sided
3M (TC) 1170CIR-1(250)	Circular	0.003 "	0.08 mm	60 Months	Shielding Sheet	27 °C, 80 °F	10 °C			Date of Manufacture	-40 °C	130 °C	Aluminum Foil	Conductive, Single Sided	1 in		25.4 mm
