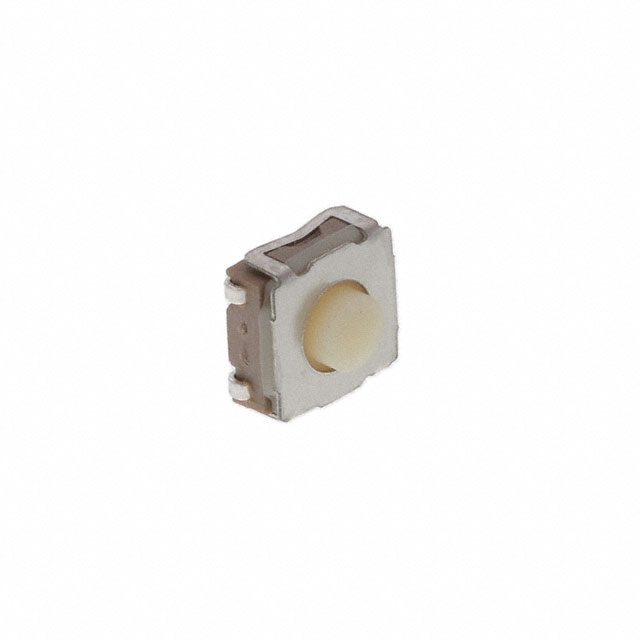

TL3304AF160QJ

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Technical Specifications

Parameters and characteristics for this part

Specification	TL3304AF160QJ

Actuator Height off PCB, Vertical	3.4 mm
Actuator Material	Rubber
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	6.2 mm
Outline [y]	6.2 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	J Lead

Part	Mounting Type	Switch Function	Actuator Height off PCB, Vertical	Actuator Orientation	Switch Travel	Contact Rating @ Voltage	Outline [y]	Outline [x]	Illumination	Circuit	Termination Style	Operating Force	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Actuator Material	Actuator Type
E-Switch TL3304AF260QG	Surface Mount	Off-Mom	3.4 mm	Top Actuated	0.25 mm	0.05 A 50 VDC	6.2 mm	6.2 mm	Non-Illuminated	SPST-NO	Gull Wing	260 gf	-20 C	70 °C	100000 Cycles	Rubber	Standard
E-Switch TL3304BF160QG	Surface Mount	Off-Mom		Top Actuated	0.25 mm	0.05 A 12 VDC	6.2 mm	6.2 mm	Non-Illuminated	SPST-NO	Gull Wing		-20 C	70 °C	100000 Cycles	Rubber	Standard
E-Switch TL3304AF260QJ	Surface Mount	Off-Mom	3.4 mm	Top Actuated	0.25 mm	0.05 A 50 VDC	6.2 mm	6.2 mm	Non-Illuminated	SPST-NO	J Lead	260 gf	-20 C	70 °C	100000 Cycles	Rubber	Standard
E-Switch TL3304AF160QJ	Surface Mount	Off-Mom	3.4 mm	Top Actuated	0.25 mm	0.05 A 50 VDC	6.2 mm	6.2 mm	Non-Illuminated	SPST-NO	J Lead		-20 C	70 °C	100000 Cycles	Rubber	Standard
E-Switch TL3304AF350QJ	Surface Mount	Off-Mom	3.4 mm	Top Actuated	0.25 mm	0.05 A 50 VDC	6.2 mm	6.2 mm	Non-Illuminated	SPST-NO	J Lead	350 gf	-20 C	70 °C	100000 Cycles	Rubber	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
