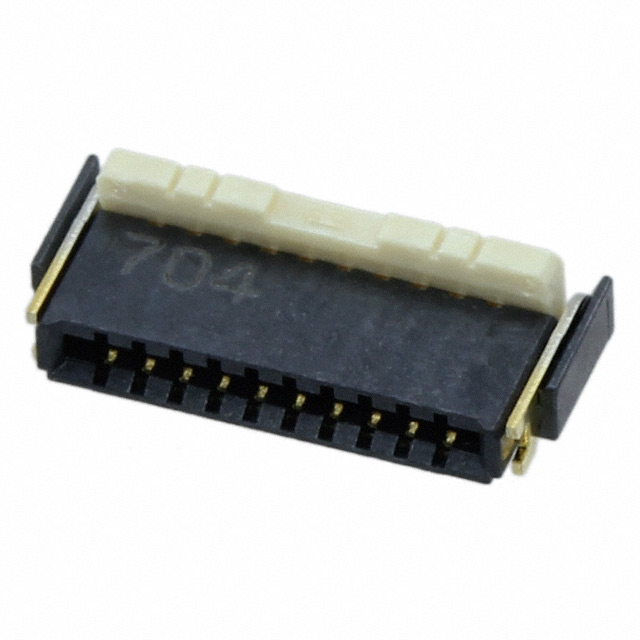

AYF531035A

Active

Panasonic Electric Works

CONN FFC FPC 10POS 0.5MM R/A

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN FFC FPC 10POS 0.5MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	AYF531035A

Actuator Material	Liquid Crystal Polymer (LCP)
Cable End Type	Tapered
Connector/Contact Type	Contacts, Top and Bottom
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Current Rating (Amps)	500 mA
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	1 mm
Height Above Board [z]	0.039 in
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock, Backlock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

Part	Contact Finish	Actuator Material	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Current Rating (Amps)	Housing Material	Contact Finish Thickness	Cable End Type	Voltage Rating	FFC, FCB Thickness	Material Flammability Rating	Contact Material	Flat Flex Type	Connector/Contact Type	Number of Positions	Height Above Board [z]	Height Above Board [z]	Mounting Type	Locking Feature	Termination
Panasonic Electric Works AYF531035A	Gold	Liquid Crystal Polymer (LCP)	20	85 °C	-55 °C	0.5 mm	0.02 in	500 mA	Liquid Crystal Polymer (LCP)	Flash	Tapered	50 V	0.3 mm	UL94 V-0	Copper Alloy	FFC FPC	Contacts Top and Bottom	10	1 mm	0.039 in	Surface Mount Right Angle	Backlock Flip Lock	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
