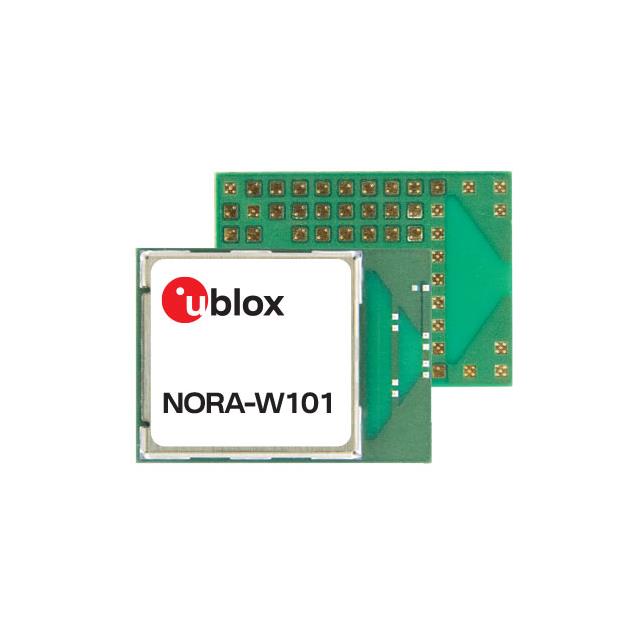

NORA-W101-00B

Active

u-blox

RF TXRX MOD BLUETOOTH WIFISMD

Search across all available documentation for this part.

Active

u-blox

RF TXRX MOD BLUETOOTH WIFISMD

Technical Specifications

Parameters and characteristics for this part

Part	Antenna Type	Frequency	Data Rate	Protocol	RF Family/Standard	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Power - Output	Package / Case	Utilized IC / Part	Modulation	Serial Interfaces	Current - Transmitting [Min]	Current - Transmitting [Max]	Sensitivity	Current - Receiving	Memory Size
u-blox NORA-W106-00B	PCB Trace	2.4 GHz	150 Mbps	802.11b/g/n Bluetooth v5.0	Bluetooth WiFi	Surface Mount	3.6 V	3 V	85 °C	-40 °C	18 dBm	82-SMD Module	ESP32-S3
u-blox NORA-W101-00B	Antenna Not Included	2.4 GHz	54 Mbps	802.11b/g/n Bluetooth v5.0	Bluetooth WiFi	Surface Mount	3.6 V	3 V	85 °C	-40 °C	17 dBm	82-SMD Module	ESP32-S3	CCK DSSS OFDM	I2C SDIO SPI UART	130 mA	190 mA	-98 dBm	95 mA	8 MB 512 kB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 6.01
	Digi-Reel®	1	$ 6.01
	Tape & Reel (TR)	500	$ 4.91

General part information

Bluetooth, WiFi 802.11b/g/n, Bluetooth v5.0 Transceiver Module 2.4GHz Antenna Not Included Surface Mount
