852-90-060-20-001000

Active

Mill-Max Manufacturing Corp.

CONN HEADER R/A 60POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

852-90-060-20-001000

Active

Mill-Max Manufacturing Corp.

CONN HEADER R/A 60POS 1.27MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	852-90-060-20-001000

Connector Type	Header
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	5.08 µm
Contact Finish Thickness - Mating	200 µin
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Mating	3 mm
Contact Length - Mating	0.118 in
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Brass Alloy
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.05 mm
Insulation Height	0.12 in
Insulation Material	Polyamide (PA46), Nylon 4/6
Mounting Type	Through Hole, Right Angle
Number of Positions	60
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Unshrouded
Termination	Solder

852-90 Series

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Shrouding	Contact Finish - Mating	Contact Shape	Fastening Type	Insulation Color	Termination	Mounting Type	Number of Positions	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Contact Type	Number of Rows	Contact Material	Overall Contact Length [x]	Overall Contact Length [x]	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Contact Length - Post [x]
Mill-Max Manufacturing Corp. 852-90-080-30-001000	200 µin	5.08 µm	Header	Tin-Lead	5.08 µm	200 µin	Polyamide (PA46) Nylon 4/6	Unshrouded	Tin-Lead	Circular	Push-Pull	Black	Solder	Surface Mount	80	3 mm	0.118 in	All	0.05 in	1.27 mm	0.05 in	1.27 mm	Male Pin	2	Brass Alloy
Mill-Max Manufacturing Corp. 852-90-032-10-001000	200 µin	5.08 µm	Header	Tin-Lead	5.08 µm	200 µin	Polyamide (PA46) Nylon 4/6	Unshrouded	Tin-Lead	Circular	Push-Pull	Black	Solder	Through Hole		3 mm	0.118 in	All	0.05 in	1.27 mm	0.05 in	1.27 mm	Male Pin	2	Brass Alloy	8.1 mm	0.319 in	0.118 in	3 mm
Mill-Max Manufacturing Corp. 852-90-068-30-001000	200 µin	5.08 µm	Header	Tin-Lead	5.08 µm	200 µin	Polyamide (PA46) Nylon 4/6	Unshrouded	Tin-Lead	Circular	Push-Pull	Black	Solder	Surface Mount	68	3 mm	0.118 in	All	0.05 in	1.27 mm	0.05 in	1.27 mm	Male Pin	2	Brass Alloy
Mill-Max Manufacturing Corp. 852-90-078-30-001000	200 µin	5.08 µm	Header	Tin-Lead	5.08 µm	200 µin	Polyamide (PA46) Nylon 4/6	Unshrouded	Tin-Lead	Circular	Push-Pull	Black	Solder	Surface Mount	78	3 mm	0.118 in	All	0.05 in	1.27 mm	0.05 in	1.27 mm	Male Pin	2	Brass Alloy
Mill-Max Manufacturing Corp. 852-90-080-10-001000	200 µin	5.08 µm	Header	Tin-Lead	5.08 µm	200 µin	Polyamide (PA46) Nylon 4/6	Unshrouded	Tin-Lead	Circular	Push-Pull	Black	Solder	Through Hole	80	3 mm	0.118 in	All	0.05 in	1.27 mm	0.05 in	1.27 mm	Male Pin	2	Brass Alloy	8.1 mm	0.319 in	0.118 in	3 mm
Mill-Max Manufacturing Corp. 852-90-068-10-001000	200 µin	5.08 µm	Header	Tin-Lead	5.08 µm	200 µin	Polyamide (PA46) Nylon 4/6	Unshrouded	Tin-Lead	Circular	Push-Pull	Black	Solder	Through Hole	68	3 mm	0.118 in	All	0.05 in	1.27 mm	0.05 in	1.27 mm	Male Pin	2	Brass Alloy	8.1 mm	0.319 in	0.118 in	3 mm
Mill-Max Manufacturing Corp. 852-90-012-30-001000	200 µin	5.08 µm	Header	Tin-Lead	5.08 µm	200 µin	Polyamide (PA46) Nylon 4/6	Unshrouded	Tin-Lead	Circular	Push-Pull	Black	Solder	Surface Mount	12	3 mm	0.118 in	All	0.05 in	1.27 mm	0.05 in	1.27 mm	Male Pin	2	Brass Alloy
Mill-Max Manufacturing Corp. 852-90-034-30-001000	200 µin	5.08 µm	Header	Tin-Lead	5.08 µm	200 µin	Polyamide (PA46) Nylon 4/6	Unshrouded	Tin-Lead	Circular	Push-Pull	Black	Solder	Surface Mount	34	3 mm	0.118 in	All	0.05 in	1.27 mm	0.05 in	1.27 mm	Male Pin	2	Brass Alloy
Mill-Max Manufacturing Corp. 852-90-074-20-001000	200 µin	5.08 µm	Header	Tin-Lead	5.08 µm	200 µin	Polyamide (PA46) Nylon 4/6	Unshrouded	Tin-Lead	Circular	Push-Pull	Black	Solder	Through Hole Right Angle	74	3 mm	0.118 in	All	0.05 in	1.27 mm	0.05 in	1.27 mm	Male Pin	2	Brass Alloy				3.2 mm	3.05 mm	0.12 in	0.126 in
Mill-Max Manufacturing Corp. 852-90-060-20-001000	200 µin	5.08 µm	Header	Tin-Lead	5.08 µm	200 µin	Polyamide (PA46) Nylon 4/6	Unshrouded	Tin-Lead	Circular	Push-Pull	Black	Solder	Through Hole Right Angle	60	3 mm	0.118 in	All	0.05 in	1.27 mm	0.05 in	1.27 mm	Male Pin	2	Brass Alloy				3.2 mm	3.05 mm	0.12 in	0.126 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	52	$ 21.41

Description

General part information

852-90 Series

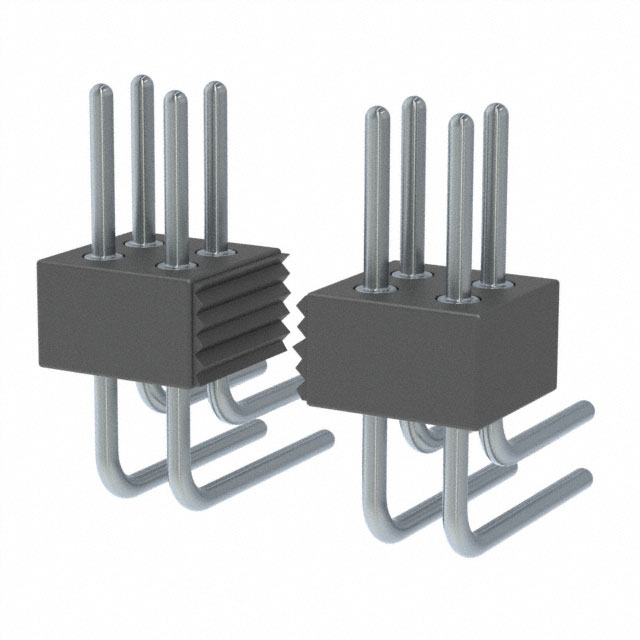

Connector Header Through Hole, Right Angle 60 position 0.050" (1.27mm)

Documents

Technical documentation and resources

No documents available
