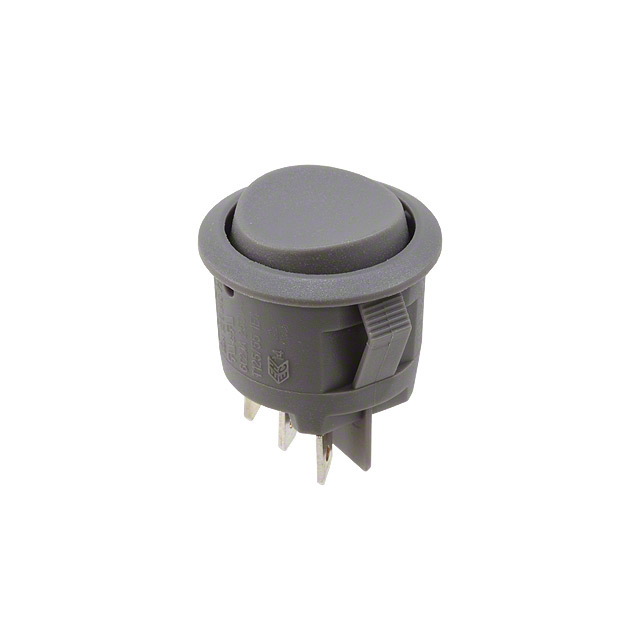

RRA1534400

Active

E-Switch

SWITCH ROCKER SPDT 10A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROCKER SPDT 10A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	RRA1534400

Actuator Marking	No Marking
Actuator Type	Round
Approval Agency	UL, cUL
Circuit	SPDT
Current Rating (Amps)	10 A
Electrical Life	10000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-Off-On
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Mounting Type	Electrical Life	Actuator Type	Panel Cutout Dimensions [diameter]	Switch Function	Current Rating (Amps)	Termination Style	Actuator Marking	Voltage Rating - AC	Approval Agency
E-Switch RRA1534400	-20 C	105 ░C	SPDT	Panel Mount Snap-In	10000 Cycles	Round	22 mm	On-Off-On	10 A	Quick Connect - 0.187" (4.7mm)	No Marking	125 V	cUL UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPDT 10A (AC) 125 V Panel Mount, Snap-In
