5-1415535-5

Active

TE Connectivity Potter & Brumfield Relays

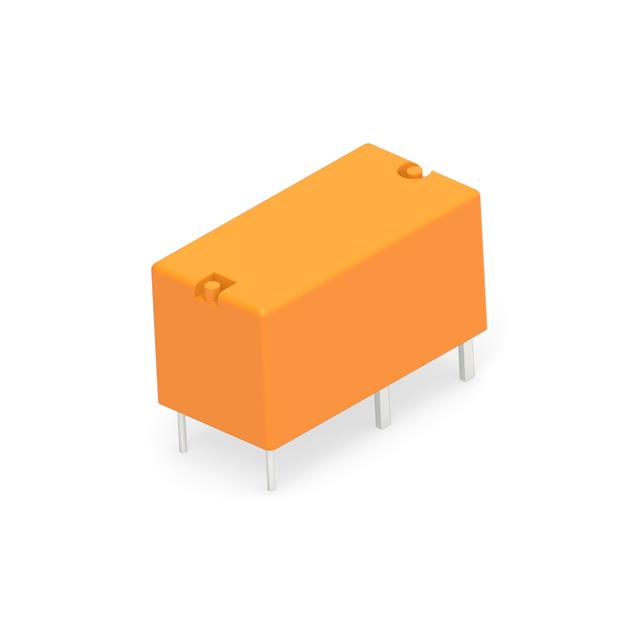

RELAY GEN PURPOSE SPDT 5A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5-1415535-5

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 5A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5-1415535-5

Approval Agency	cURus, VDE
Coil Current	8.8 mA
Coil Resistance	2725 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	5 A
Load - Max Switching	2000 VA
Mounting Type	Through Hole
Must Operate Voltage	18 VDC
Must Release Voltage	2.4 VDC
Operate Time	8 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	8 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage [Max]	400 VAC
Termination Style	PC Pin

1415535 Series

Part	Contact Rating (Current)	Coil Type	Operate Time	Relay Type	Mounting Type	Switching Voltage [Max]	Load - Max Switching	Termination Style	Contact Material	Coil Resistance	Must Operate Voltage	Contact Form	Coil Voltage	Release Time	Coil Current	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Must Release Voltage	Seal Rating
TE Connectivity Potter & Brumfield Relays 4-1415535-6	6 A	Non Latching	8 ms	General Purpose	Through Hole	400 VAC	2000 VA	PC Pin	Silver Nickel (AgNi)	125 Ohms	3.8 VDC	SPST-NO (1 Form A)	5 VDC	8 ms	40 mA	85 °C	-40 °C	cURus VDE
TE Connectivity Potter & Brumfield Relays 5-1415535-5	5 A	Non Latching	8 ms	General Purpose	Through Hole	400 VAC	2000 VA	PC Pin	Silver Tin Oxide (AgSnO)	2725 Ohms	18 VDC	SPDT (1 Form C)	24 VDC	8 ms	8.8 mA	85 °C	-40 °C	cURus VDE	2.4 VDC	Sealed - Flux Protection
TE Connectivity Potter & Brumfield Relays 4-1415535-7	6 A	Non Latching	8 ms	General Purpose	Through Hole	400 VAC	2000 VA	PC Pin	Silver Nickel (AgNi)	172 Ohms	4.5 VDC	SPST-NO (1 Form A)		8 ms	34.9 mA	85 °C	-40 °C	cURus VDE	0.6 VDC	Sealed - Flux Protection
TE Connectivity Potter & Brumfield Relays 4-1415535-8	6 A	Non Latching	8 ms	General Purpose	Through Hole	400 VAC	2000 VA	PC Pin	Silver Nickel (AgNi)	405 Ohms	6.8 VDC	SPST-NO (1 Form A)	9 VDC	8 ms	22.2 mA	85 °C	-40 °C	cURus VDE
TE Connectivity Potter & Brumfield Relays 5-1415535-0	6 A	Non Latching	8 ms	General Purpose	Through Hole	400 VAC	2000 VA	PC Pin	Silver Nickel (AgNi)	1.545 kOhms	13.5 VDC	SPST-NO (1 Form A)	18 VDC	8 ms	11.7 mA	85 °C	-40 °C	cURus VDE	1.8 VDC	Sealed - Flux Protection
TE Connectivity Potter & Brumfield Relays 5-1415535-1	6 A	Non Latching	8 ms	General Purpose	Through Hole	400 VAC	2000 VA	PC Pin	Silver Nickel (AgNi)	2.752 kOhms	18 VDC	SPST-NO (1 Form A)	24 VDC	8 ms	8.7 mA	85 °C	-40 °C	cURus VDE	2.4 VDC	Sealed - Flux Protection
