HPFC-102-02-L-D-04-LC

Active

Samtec Inc.

.100" SIGNAL/POWER COMBO SOCKET

Search across all available documentation for this part.

Active

Samtec Inc.

.100" SIGNAL/POWER COMBO SOCKET

Technical Specifications

Parameters and characteristics for this part

Specification	HPFC-102-02-L-D-04-LC

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Beryllium Copper
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	9 mm
Insulation Height	0.354 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Fastening Type	Contact Shape	Termination	Contact Finish - Mating	Contact Finish - Post	Contact Material	Number of Positions	Mounting Type	Connector Type	Contact Type	Insulation Color	Number of Positions Loaded	Number of Rows
Samtec Inc. HPFC-102-02-L-D-04-LC	-55 °C	125 °C	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	0.1 in	2.54 mm	9 mm	0.354 in	Push-Pull	Square	Solder	Gold	Tin	Beryllium Copper	8	Surface Mount	Receptacle	Female Socket	Black	All	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

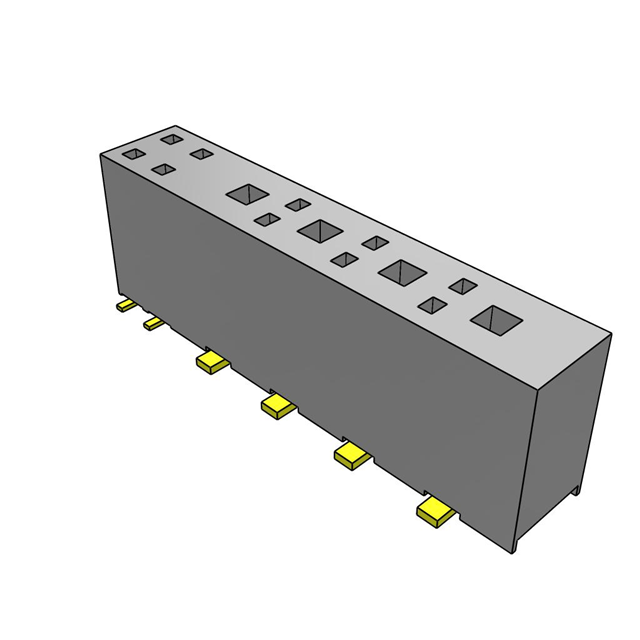

8 (4 + 4 Power) Position Receptacle Connector 0.100" (2.54mm) Surface Mount Gold
