A99000-025

Active

Omnetics

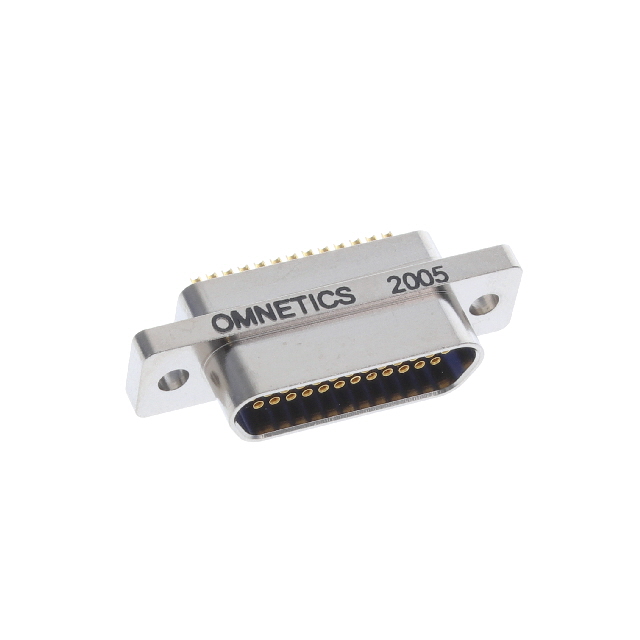

CONN MICRO-D RCPT 25POS SLDR CUP

Search across all available documentation for this part.

Active

Omnetics

CONN MICRO-D RCPT 25POS SLDR CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position D-Type, Micro-D Receptacle, Female Sockets Connector

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	A99000-025	MMDS-025 Series

1st Connector	-	Receptacle, Female Sockets
2nd Connector	-	Individual Wire Leads
Color	-	Multiple, Individual
Connector Style	Micro-D, D-Type	Micro-D, D-Type
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Form	Stamped	Stamped
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Signal	Signal
Current Rating (Amps)	3 A	3 A
Dielectric Material	Thermoplastic	Thermoplastic
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Length	-	457.2 mm
Length	-	1.5 ft
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Aluminum, Nickel Plated, Electroless	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout [custom]	0.05	0.05
Shell Size, Connector Layout [custom]	0.05	0.05
Shielding	-	Unshielded
Type	-	D-Type, Micro-D

CONN MICRO-D RCPT 25POS SLDR CUP

Part	Contact Type	Shell Material, Finish	Contact Form	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Mounting Type	Connector Type	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Connector Style	Flange Feature	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Rows	Shielding	Color	Type	Length [x]	Length [x]	2nd Connector	1st Connector
Omnetics A99000-025	Signal	Aluminum, Electroless, Nickel Plated	Stamped	0.05	0.05	Free Hanging (In-Line)	Receptacle, Female Sockets	3 A	50 µin	1.27 µm	Gold	D-Type, Micro-D	Housing/Shell (Unthreaded)	Thermoplastic	-55 °C	125 °C	Copper Alloy	2
Omnetics A99100-025									50 µin	1.27 µm	Gold								Unshielded	Individual, Multiple	D-Type, Micro-D	457.2 mm	1.5 ft	Individual Wire Leads	Female Sockets, Receptacle
