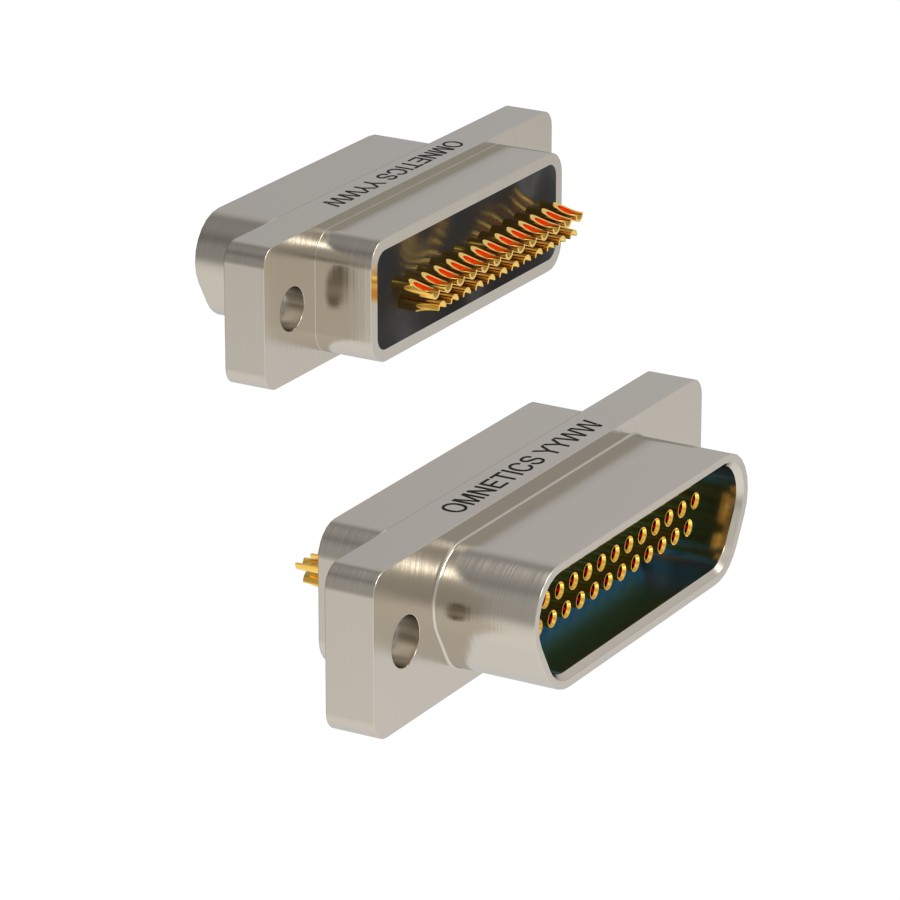

Specification	A99000-025

Connector Layout Pitch	0.05
Connector Layout Row to Row	0.05
Connector Style	Micro-D, D-Type
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Form	Stamped
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Per Contact)	3 A
Dielectric Material	Thermoplastic
Finish	Electroless Nickel
Flange Feature	Shell (Unthreaded), Housing
Mounting Type	Free Hanging (In-Line)
Number of Positions	25
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Primary Material	Metal
Shell Material	Aluminum
Shell Material, Finish	Electroless, Nickel Plated, Aluminum
Termination	Solder Cup

MMDS-025 Series

Part	Number of Positions	Contact Finish	Length	Color	1st Connector	2nd Connector	Type	Shielding	Contact Finish Thickness	Shell Material	Finish	Flange Feature	Connector Layout Pitch	Connector Layout Row to Row	Mounting Type	Primary Material	Contact Type	Connector Type	Shell Material, Finish	Connector Style	Current Rating (Per Contact)	Number of Rows	Termination	Contact Form	Dielectric Material	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material
Omnetics A99100-025	25	Gold	1.5 ft	Individual Multiple	Female Sockets Receptacle	Individual Wire Leads	D-Type Micro-D	Unshielded	50 µin
Omnetics A99000-025	25	Gold							50 µin	Aluminum	Electroless Nickel	Housing Shell (Unthreaded)	0.05	0.05	Free Hanging (In-Line)	Metal	Signal	Female Sockets Receptacle	Aluminum Electroless Nickel Plated	D-Type Micro-D	3 A	2	Solder Cup	Stamped	Thermoplastic	125 °C	-55 °C	Copper Alloy
