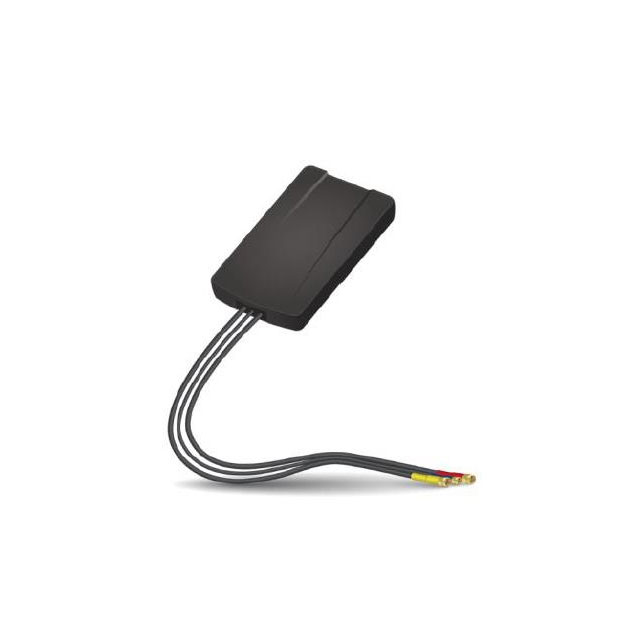

X1005244-LWA3SX10A2

Active

KYOCERA AVX

ANTENNA GNSS / LTE / WIFI

Search across all available documentation for this part.

Active

KYOCERA AVX

ANTENNA GNSS / LTE / WIFI

Technical Specifications

Parameters and characteristics for this part

ANTENNA GNSS / LTE / WIFI

Part	Number of Bands	Termination	Applications	RF Family/Standard	Height (Max) [Max]	Height (Max) [Max]	Mounting Type	Ingress Protection	Antenna Type	VSWR	Gain	Features	Frequency (Center/Band)	Frequency Group	Frequency Range [Max]	Frequency Range [Min]
KYOCERA AVX X1005244-LWA3SX10A2	8	RP-SMA Male (1), SMA Male (2)	GLONASS, GNSS, GPS, LTE, Wi-Fi	Cellular, Navigation, WiFi	12.7 mm	12.7 mm	Adhesive	IPX7	Module	2, 2.5, 3	1.1 dBi, 2.1 dBi, 2.3 dBi, 3.4 dBi, 3.5 dBi, 3.7 dBi, 4.5 dBi, 4.6 dBi	Cable - 1m, LNA	1.561 GHz, 1.575 GHz, 1.602 GHz, 1.94 GHz, 2.45 GHz, 2.495 GHz, 5.5 GHz, 829 MHz	Wide Band	2.17 GHz, 2.5 GHz, 2.69 GHz, 5.85 GHz, 960 MHz	1.71 GHz, 2.3 GHz, 2.4 GHz, 5.15 GHz, 698 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA GLONASS, GPS, GNSS, LTE, Wi-Fi Module SMA Male (2), RP-SMA Male (1) Adhesive
