ELSH-F81R3-0LPNM-BR4R6

Active

Everlight Electronics Co Ltd

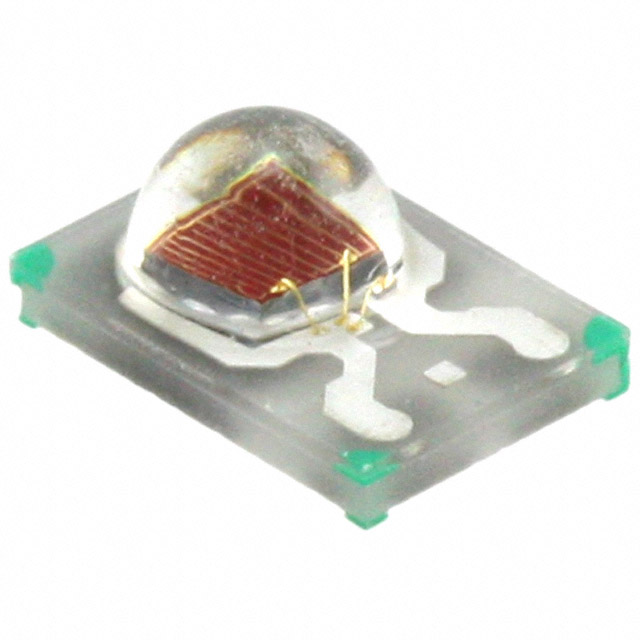

LED SHUEN RED 623NM SMD

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

LED SHUEN RED 623NM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	ELSH-F81R3-0LPNM-BR4R6

Color	Red
Current - Max [Max]	750 mA
Lumens/Watt @ Current - Test	46 lm/W
Luminous Flux @ Current/Temperature	85 lm
Luminous Flux @ Current/Temperature [Max]	90 lm
Luminous Flux @ Current/Temperature [Min]	80 lm
Mounting Type	Surface Mount
Package / Case	3246 Metric, 1218
Size / Dimension [x]	3.05 mm
Size / Dimension [x]	0.12 in
Size / Dimension [y]	0.177 "
Size / Dimension [y]	4.5 mm
Supplier Device Package	SMD
Thermal Resistance of Package [custom]	8 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.65 V
Wavelength	623 nm
Wavelength [Max]	630 nm
Wavelength [Min]	615 nm

Part	Lumens/Watt @ Current - Test	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test [Max]	Voltage - Forward (Vf) (Typ)	Viewing Angle	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Flux @ 85°C, Current - Test	Color	Thermal Resistance of Package [diameter]	Current - Test	Mounting Type	CCT (K)	CCT (K) [Max]	CCT (K) [Min]	Current - Max [Max]	CRI (Color Rendering Index)	Wavelength [Min]	Wavelength	Wavelength [Max]	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature	Thermal Resistance of Package [custom]	Supplier Device Package	Size / Dimension [y]	Package / Case
Everlight Electronics Co Ltd ELSH-F81M1-0CPGS-C3500	67 lm/W	80 lm	90 lm	3.4 V	120 °	1812 (4532 Metric)	0.177 in	4.5 mm	0.12 "	3.05 mm	70 lm	Warm White	10 °C/W	350 mA	Surface Mount	3500 K	3710 K	3220 K	400 mA	75
Everlight Electronics Co Ltd ELSH-F81R3-0LPNM-BR4R6	46 lm/W			2.65 V	120 °		0.12 in	3.05 mm	0.177 "			Red			Surface Mount				750 mA		615 nm	623 nm	630 nm	90 lm	80 lm	85 lm	8 °C/W	SMD	4.5 mm	1218 3246 Metric
Everlight Electronics Co Ltd ELSH-F81N1-0LPGS-C4000	67 lm/W	80 lm	90 lm	3.4 V	120 °	1812 (4532 Metric)	0.177 in	4.5 mm	0.12 "	3.05 mm	70 lm	Neutral White	10 °C/W	350 mA	Surface Mount	4000 K			400 mA	75
Everlight Electronics Co Ltd ELSH-F81C1-0LPGS-C5700	67 lm/W	80 lm	90 lm	3.4 V	120 °	1812 (4532 Metric)	0.177 in	4.5 mm	0.12 "	3.05 mm	70 lm	Cool White	10 °C/W	350 mA	Surface Mount		6020 K	5310 K	400 mA	70

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.66
	Digi-Reel®	1	$ 4.66
	Tape & Reel (TR)	1200	$ 2.06

General part information

LED Lighting Color SHUEN Red 623nm (615nm ~ 630nm) 1218 (3246 Metric)
