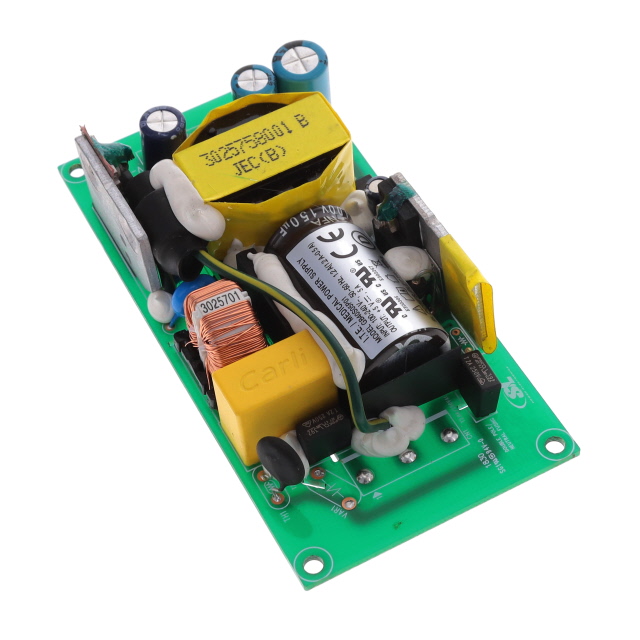

GB40S05P01

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 5V 25W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 5V 25W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 5V 90 ~ 264 VAC Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

AC/DC CONVERTER 5V 25W

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Approval Agency	Power (Watts)	Voltage - Isolation	Number of Outputs	Minimum Load Required	Mounting Type	Voltage - Output 1	Efficiency	Features	Voltage - Input [Max]	Voltage - Input [Min]	Type	Applications	Current - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [y]	Standard Number
SL POWER / Advanced Energy GB40S05K01	101.6 mm	25.4 mm	1 "	4 in	48.26 mm	48.3 mm	CE, cURus, UL	25 W	4000 V	1		Chassis Mount	5 V	88 %	Universal Input	240 VAC	100 VAC	Open Frame	ITE (Commercial), Medical	5 A	-25 °C	70 °C
SL POWER / Advanced Energy GB40S05P01	101.6 mm		0.81 in	4 in	2 in		CE, cURus, DEMKO	25 W	4000 V	1		Chassis Mount	5 V	88 %	Universal Input	264 VAC	90 VAC	Open Frame	ITE (Commercial), Medical	5 A	-25 °C	70 °C	20.6 mm	50.8 mm	60601-1, 62368-1
