2765602

Active

Phoenix Contact

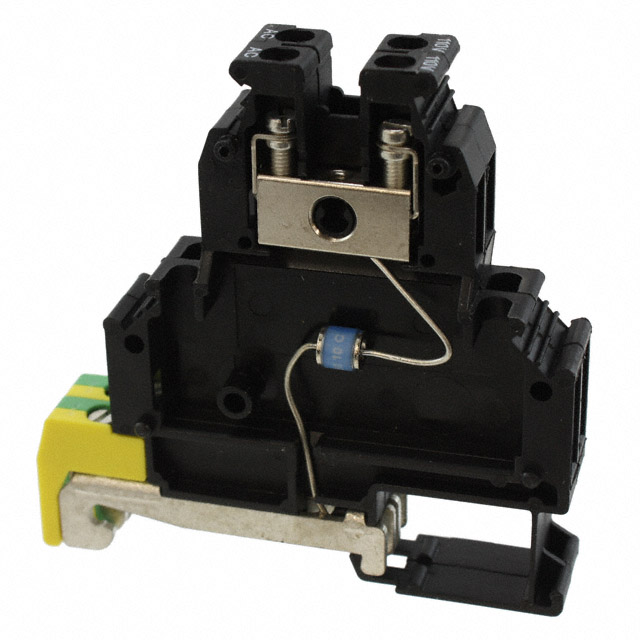

DIN RAIL TERMINAL BLOCKS TT-SLKK5-F/110AC

Search across all available documentation for this part.

Active

Phoenix Contact

DIN RAIL TERMINAL BLOCKS TT-SLKK5-F/110AC

Technical Specifications

Parameters and characteristics for this part

Specification	2765602

Color	Black
Features	Gas Filled Surge Arrestor
Material - Insulation	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-2
Number of Levels	1 Grounded
Number of Levels	2
Stripping Length	8 mm
Terminal - Width [y]	6.2 mm
Termination Style	Screw
Type	Feed Through
Wire Gauge or Range - mm² [Max]	4 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²

DIN Rail Terminal Blocks TT-SLKK5-F/110AC

Part	Stripping Length	Color	Type	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Terminal - Width [y]	Material Flammability Rating	Material - Insulation	Termination Style	Features	Number of Levels	Number of Levels
Phoenix Contact 2765602	8 mm	Black	Feed Through	0.2 mm²	4 mm²	6.2 mm	UL94 V-2	Nylon, Polyamide (PA)	Screw	Gas Filled Surge Arrestor	1 Grounded	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

DIN Rail Terminal Blocks TT-SLKK5-F/110AC
