0679-0 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish Thickness	Contact Finish	Mounting Hole Diameter	Termination	Accepts Pin Diameter (Min)	Accepts Pin Diameter (Max)	Contact Material	Pin Hole Diameter	Socket Depth	Tail Type	Flange Diameter	Length - Overall
Mill-Max Manufacturing Corp. 0679-0-15-15-30-14-10-0	125 °C	-55 °C	10 Ąin	Gold	0.054 in	Solder	0.015 in	0.025 in	Beryllium Copper	0.043 in	0.12 in	No Tail	0.072 in	0.203 in
Mill-Max Manufacturing Corp. 0679-0-15-01-30-02-10-0	125 °C	-55 °C	100 µin	Tin-Lead	0.054 in	Solder	0.015 in	0.025 in	Beryllium Copper	0.043 in	0.12 in	No Tail	0.072 in	0.203 in

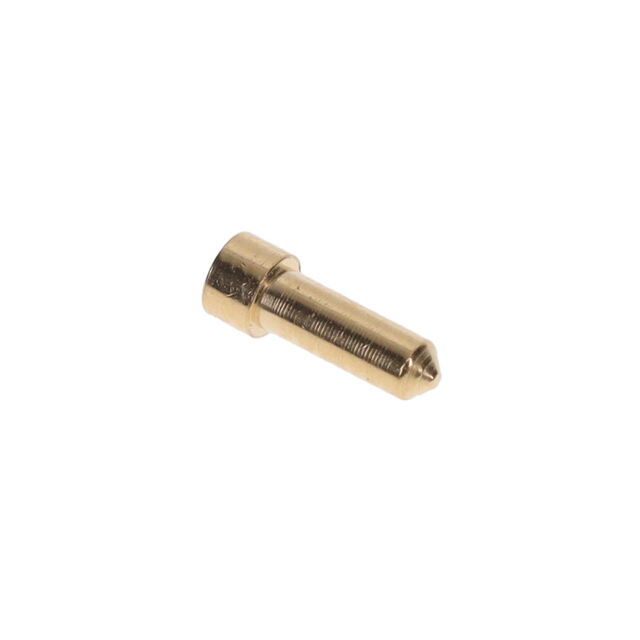

Mill-Max Manufacturing Corp. 0679-0-15-15-30-27-10-0	125 °C	-55 °C	30 µin	Gold	0.054 in	Solder	0.015 in	0.025 in	Beryllium Copper	0.043 in	0.12 in	No Tail	0.072 in	0.203 in
Mill-Max Manufacturing Corp. 0679-0-15-80-30-27-10-0	125 °C	-55 °C	30 µin	Gold	0.054 in	Solder	0.015 in	0.025 in	Beryllium Copper	0.043 in	0.12 in	No Tail	0.072 in	0.203 in
Mill-Max Manufacturing Corp. 0679-0-15-80-30-14-10-0	125 °C	-55 °C	10 Ąin	Gold	0.054 in	Solder	0.015 in	0.025 in	Beryllium Copper	0.043 in	0.12 in	No Tail	0.072 in	0.203 in
Mill-Max Manufacturing Corp. 0679-0-15-01-30-14-10-0	125 °C	-55 °C	10 Ąin	Gold	0.054 in	Solder	0.015 in	0.025 in	Beryllium Copper	0.043 in	0.12 in	No Tail	0.072 in	0.203 in
Mill-Max Manufacturing Corp. 0679-0-15-01-30-27-10-0	125 °C	-55 °C	30 µin	Gold	0.054 in	Solder	0.015 in	0.025 in	Beryllium Copper	0.043 in	0.12 in	No Tail	0.072 in	0.203 in
