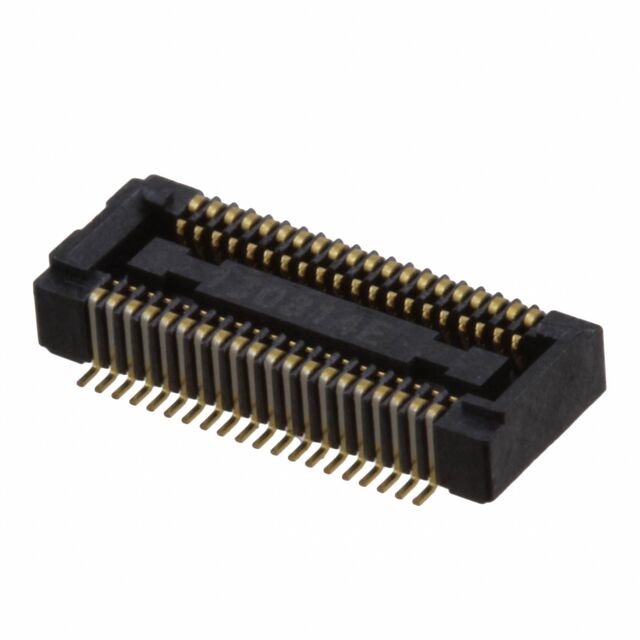

AXK740247G

Active

Panasonic Electric Works

CONN SOCKET 40POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK740247G

Connector Type	Center Strip, Socket, Outer Edge Contacts
Contact Finish	Gold
Height Above Board	0.076 in
Height Above Board	1.92 mm
Mated Stacking Heights	2 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Number of Rows	Mounting Type	Number of Positions	Mated Stacking Heights	Height Above Board	Height Above Board	Contact Finish	Pitch [x]	Pitch [x]	Connector Type
Panasonic Electric Works AXK740247G	2	Surface Mount	40	2 mm	0.076 in	1.92 mm	Gold	0.016 in	0.4 mm	Center Strip Outer Edge Contacts Socket
Panasonic Electric Works AXK740247GA	2	Surface Mount	40	2 mm	0.076 in	1.92 mm	Gold	0.016 in	0.4 mm	Center Strip Outer Edge Contacts Socket
Panasonic Electric Works AXK740247A	2	Surface Mount	40	2 mm	0.076 in	1.92 mm	Gold	0.016 in	0.4 mm	Center Strip Outer Edge Contacts Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 1.90

General part information

40 Position Connector Socket, Center Strip, Outer Edge Contacts Surface Mount Gold
