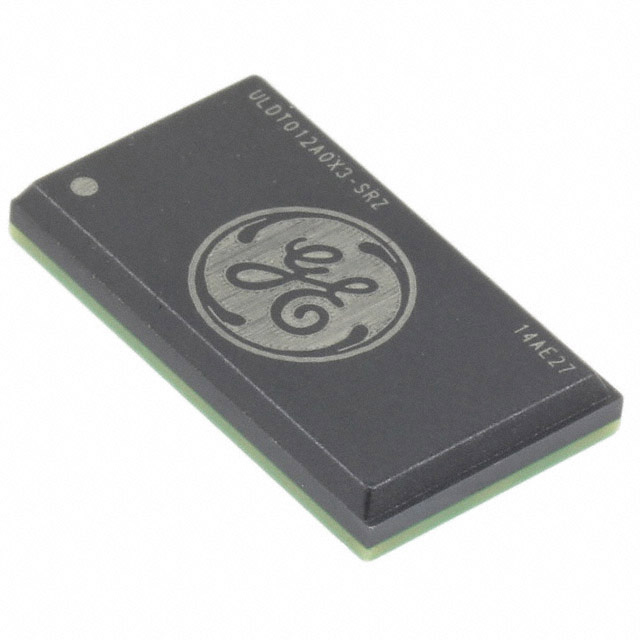

ULDT012A0X3-SRZ

Obsolete

OmniOn Power™

DC DC CONVERTER 0.45-5.5V

Search across all available documentation for this part.

Obsolete

OmniOn Power™

DC DC CONVERTER 0.45-5.5V

Technical Specifications

Parameters and characteristics for this part

Specification	ULDT012A0X3-SRZ

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	12 A
Efficiency	92 %
Features	OTP, UVLO, SCP, Remote On/Off, OCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	16-SMD Module
Size / Dimension [x]	20.3 mm
Size / Dimension [x]	0.8 "
Size / Dimension [y]	11.4 mm
Size / Dimension [y]	0.45 in
Size / Dimension [z]	3 mm
Size / Dimension [z]	0.12 in
Type	Non-Isolated PoL Module, Digital
Voltage - Input (Max) [Max]	14.4 V
Voltage - Input (Min) [Min]	3 V
Voltage - Output 1 [Max]	5.5 V
Voltage - Output 1 [Min]	0.45 V

DC DC CONVERTER 0.45-5.5V

Part	Package / Case	Voltage - Input (Max) [Max]	Features	Control Features	Voltage - Input (Min) [Min]	Applications	Mounting Type	Type	Current - Output (Max) [Max]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Number of Outputs
OmniOn Power™ ULDT012A0X3-SRZ	16-SMD Module	14.4 V	OCP, OTP, Remote On/Off, SCP, UVLO	Active Low, Enable	3 V	ITE (Commercial)	Surface Mount	Non-Isolated PoL Module, Digital	12 A	5.5 V	0.45 V	92 %	85 °C	-40 °C	11.4 mm	0.45 in	3 mm	0.12 in	20.3 mm	0.8 "	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.45 ~ 5.5V 12A 3V - 14.4V Input

Technical documentation and resources

No documents available
