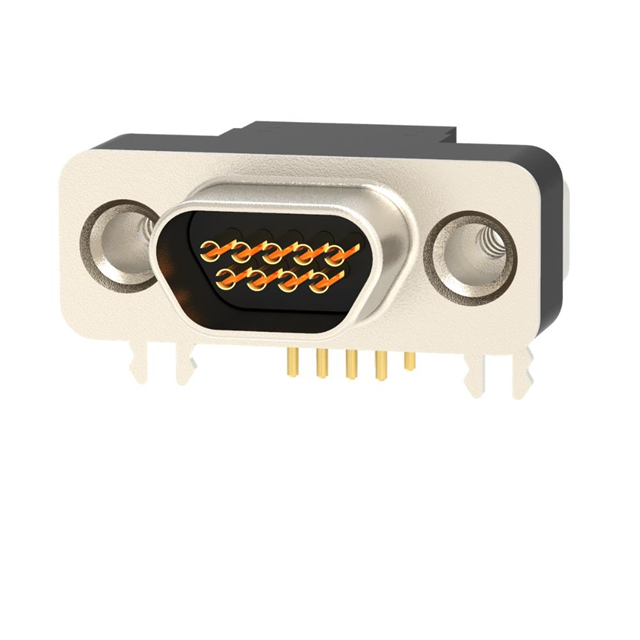

CONN MICRO-D FEMALE 9P RA PCB 15

Technical Specifications

Parameters and characteristics for this part

Specification	581-M09-213L461

Backset Spacing	5.6 mm
Backset Spacing	0.22 in
Color	Black
Connector Style	Micro-D, D-Type
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Liquid Crystal Polymer (LCP)
Features	Shielded, Board Lock
Flange Feature	Board Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated
Shell Material, Finish [custom]	Brass
Shell Material, Finish [custom]	Steel
Shell Size, Connector Layout [custom]	0.043
Shell Size, Connector Layout [custom]	0.05
Termination	Solder
Voltage Rating	60 VDC

Part	Termination	Dielectric Material	Material Flammability Rating	Contact Finish	Current Rating (Amps)	Connector Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Color	Contact Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Rows	Mounting Type	Number of Positions	Flange Feature	Connector Style	Shell Material, Finish [custom]	Shell Material, Finish [custom]	Shell Material, Finish	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Backset Spacing	Backset Spacing	Voltage Rating
MH Connectors 581-M09-213L461	Solder	Liquid Crystal Polymer (LCP)	UL94 V-0	Gold	2 A	Receptacle Female Sockets	Board Lock Shielded	125 °C	-40 °C	Black	Brass	0.043	0.05	2	Panel Mount Right Angle Through Hole	9	Board Side	D-Type Micro-D	Brass	Steel	Nickel Plated	Signal	15 µin	0.38 µm	5.6 mm	0.22 in	60 VDC
MH Connectors 581-M09-113L462	Solder	Liquid Crystal Polymer (LCP)	UL94 V-0	Gold	2 A	Male Pins Plug	Board Lock Shielded	125 °C	-40 °C	Black	Brass	0.043	0.05	2	Panel Mount Right Angle Through Hole	9	Board Side	D-Type Micro-D	Brass	Steel	Nickel Plated	Signal	30 Áin	0.76 Ám	5.6 mm	0.22 in	60 VDC
MH Connectors 581-M09-213L462	Solder	Liquid Crystal Polymer (LCP)	UL94 V-0	Gold	2 A	Receptacle Female Sockets	Board Lock Shielded	125 °C	-40 °C	Black	Brass	0.043	0.05	2	Panel Mount Right Angle Through Hole	9	Board Side	D-Type Micro-D	Brass	Steel	Nickel Plated	Signal	30 Áin	0.76 Ám	5.6 mm	0.22 in	60 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Type, Micro-D Receptacle, Female Sockets Connector
