BNI0085

Active

Balluff

PRINCIPLE OF OPERATION=INDICATOR

Search across all available documentation for this part.

Active

Balluff

PRINCIPLE OF OPERATION=INDICATOR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

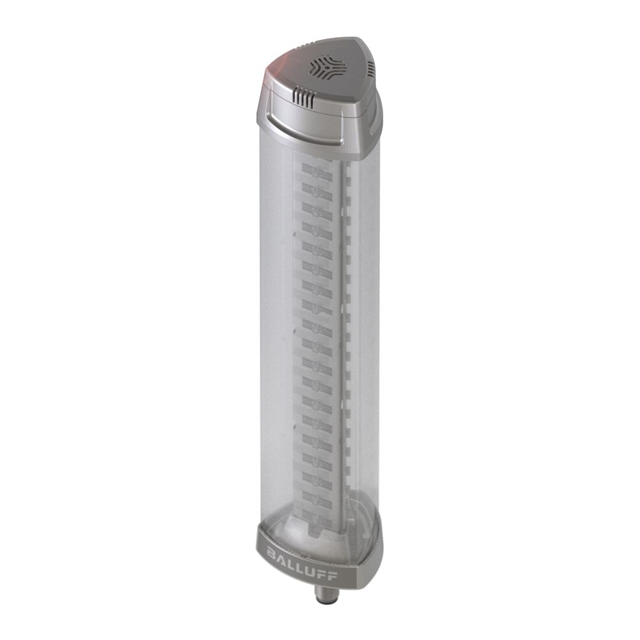

Stack Light Complete Unit Blue, Green, Orange, Red, White, Yellow LED Screw Terminal

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	BNI0085	BNI00 Series

Function - Lighting	Steady	Steady
Ingress Protection	IP30	IP65 - Dust Tight, Water Resistant, IP30
Light Color	Blue, Green, Yellow, Orange, White, Red	Blue, Green, Yellow, Orange, White, Red
Number of Stacks	5	1 - 5
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-5 °C	-5 °C
Termination Style	Screw Terminal	Screw Terminal
Type	Complete Unit	Complete Unit
Voltage - Supply [Max]	30.2 VDC	30.2 VDC
Voltage - Supply [Min]	18 V	18 V

PRINCIPLE OF OPERATION=INDICATOR

Part	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Light Color	Termination Style	Type	Function - Lighting	Number of Stacks	Operating Temperature [Max]	Operating Temperature [Min]
Balluff BNI0082	IP65 - Dust Tight, Water Resistant	30.2 VDC	18 V	Blue, Green, Orange, Red, White, Yellow	Screw Terminal	Complete Unit	Steady	5	50 °C	-5 °C
Balluff BNI0087	IP30	30.2 VDC	18 V	Blue, Green, Orange, Red, Yellow	Screw Terminal	Complete Unit	Steady	1	50 °C	-5 °C
Balluff BNI0072	IP65 - Dust Tight, Water Resistant	30.2 VDC	18 V	Blue, Green, Orange, Red, White, Yellow	Screw Terminal	Complete Unit	Steady	5	50 °C	-5 °C
Balluff BNI007T	IP65 - Dust Tight, Water Resistant	30.2 VDC	18 V	Blue, Green, Orange, Red, Yellow	Screw Terminal	Complete Unit	Steady	1	50 °C	-5 °C
Balluff BNI0085	IP30	30.2 VDC	18 V	Blue, Green, Orange, Red, White, Yellow	Screw Terminal	Complete Unit	Steady	5	50 °C	-5 °C
