341-024-500-101

Active

EDAC Inc.

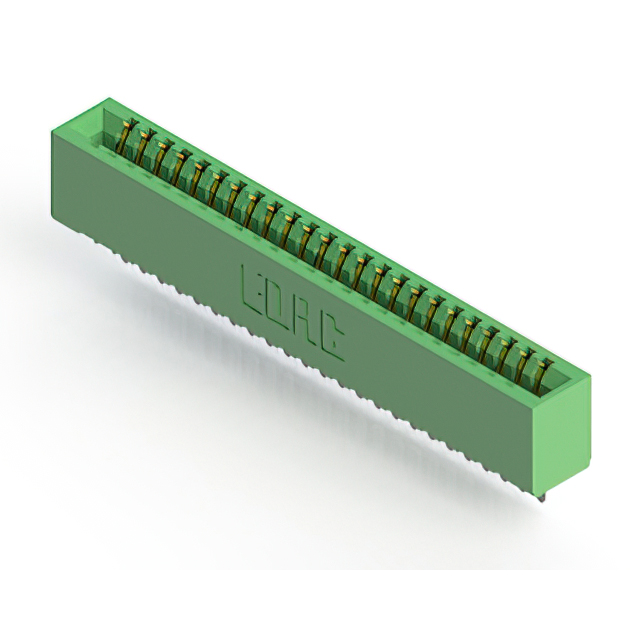

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 24 CONTACTS, PANEL MOUNT, STRAIGHT

341-024-500-101

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 24 CONTACTS, PANEL MOUNT, STRAIGHT

Description Specifications Series Pricing CAD Documents

Description

General part information

341-024 Series

24 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green

Technical Specifications

Parameters and characteristics for this part

Specification	341-024-500-101

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	Diallyl Phthalate, DAP
Mounting Type	Through Hole
Number of Positions	24 pos
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Single
Termination	Solder Eyelet(s)
Termination Rows	1 rows

341-024 Series

Part	Features	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Gender	Flange Feature Diameter	Flange Feature	Contact Finish Thickness	Read Out	Contact Type	Mounting Type	Number of Rows	Contact Finish	Termination	Card Type	Card Thickness (Min)	Card Thickness (Max)	Color	Pitch	Contact Material	Material - Insulation	Termination Rows
EDAC Inc. 341-024-556-202	Card Extender	12 24 pos	-40 °C	105 °C	Female	0.128 in	Flush Mount Top Opening Unthreaded	10 Ąin	Dual	Semi Bellows	Board Edge Straddle Mount	2	Gold	Solder	Dual Edge Non Specified	0.054 in	0.07 in	Green	0.1 in	Copper Alloy	Polyester Thermoplastic	2 rows
EDAC Inc. 341-024-524-102		24 pos	-40 °C	105 °C	Female	0.128 in	Flush Mount Top Opening Unthreaded	10 Ąin	Single	Semi Bellows	Through Hole	1	Gold	Solder	Non Specified Single Edge	0.054 in	0.07 in	Green	0.1 in	Copper Alloy	Polyester Thermoplastic	1 rows
EDAC Inc. 341-024-521-201		12 24 pos	-40 °C	105 °C	Female			10 Ąin	Dual	Semi Bellows	Through Hole	2	Gold	Solder	Dual Edge Non Specified	0.054 in	0.07 in	Green	0.1 in	Copper Alloy	Polyester Thermoplastic	2 rows
EDAC Inc. 341-024-560-203	Card Extender	12 24 pos	-40 °C	105 °C	Female	0.116 in	Floating Bobbin Flush Mount	10 Ąin	Dual	Semi Bellows	Through Hole	2	Gold	Solder	Dual Edge Non Specified	0.054 in	0.07 in	Green	0.1 in	Copper Alloy	Polyester Thermoplastic	2 rows
EDAC Inc. 341-024-520-202		12 24 pos	-40 °C	105 °C	Female	0.128 in	Flush Mount Top Opening Unthreaded	10 Ąin	Dual	Semi Bellows	Through Hole	2	Gold	Solder	Dual Edge Non Specified	0.054 in	0.07 in	Green	0.1 in	Copper Alloy	Polyester Thermoplastic	2 rows
EDAC Inc. 341-024-524-201		12 24 pos	-40 °C	105 °C	Female			10 Ąin	Dual	Semi Bellows	Through Hole	2	Gold	Solder	Dual Edge Non Specified	0.054 in	0.07 in	Green	0.1 in	Copper Alloy	Polyester Thermoplastic	2 rows
EDAC Inc. 341-024-500-101		24 pos	-40 °C	105 °C	Female			10 Ąin	Single	Semi Bellows	Through Hole	1	Gold	Solder Eyelet(s)	Non Specified Single Edge	0.054 in	0.07 in	Green	0.1 in	Copper Alloy	DAP Diallyl Phthalate	1 rows
EDAC Inc. 341-024-521-203		12 24 pos	-40 °C	105 °C	Female	0.116 in	Floating Bobbin Flush Mount	10 Ąin	Dual	Semi Bellows	Through Hole	2	Gold	Solder	Dual Edge Non Specified	0.054 in	0.07 in	Green	0.1 in	Copper Alloy	Polyester Thermoplastic	2 rows
EDAC Inc. 341-024-500-202		12 24 pos	-40 °C	105 °C	Female	0.128 in	Flush Mount Top Opening Unthreaded	10 Ąin	Dual	Semi Bellows	Through Hole	2	Gold	Solder Eyelet(s)	Dual Edge Non Specified	0.054 in	0.07 in	Green	0.1 in	Copper Alloy	DAP Diallyl Phthalate	2 rows
EDAC Inc. 341-024-560-208	Card Extender	12 24 pos	-40 °C	105 °C	Female		4-40 Flush Mount Threaded Insert Top Opening	10 Ąin	Dual	Semi Bellows	Through Hole	2	Gold	Solder	Dual Edge Non Specified	0.054 in	0.07 in	Green	0.1 in	Copper Alloy	Polyester Thermoplastic	2 rows
