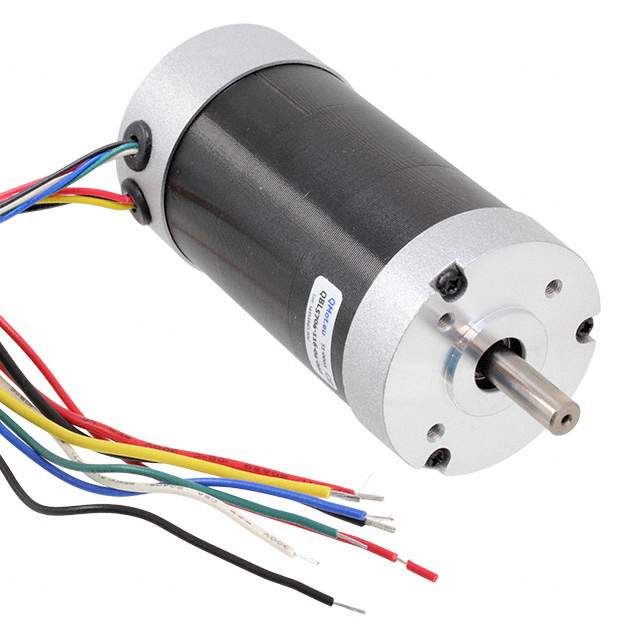

QBL5704-116-04-042
ActiveAnalog Devices Inc./Maxim Integrated
STANDARD MOTOR 4000 RPM 36V
Deep-Dive with AI
Search across all available documentation for this part.
QBL5704-116-04-042
ActiveAnalog Devices Inc./Maxim Integrated
STANDARD MOTOR 4000 RPM 36V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | QBL5704-116-04-042 | QBL5704 Series |
|---|---|---|
| Diameter - Shaft [diameter] | 0.315 in | 0.315 in |
| Diameter - Shaft [diameter] | 8 mm | 8 mm |
| Function | Standard | Standard |
| Length - Shaft and Bearing | 0.984 in | 0.984 in |
| Length - Shaft and Bearing | 25 mm | 25 mm |
| Motor Type | Brushless (BLDC) | Brushless (BLDC) |
| Mounting Hole Spacing | 46 mm | 46 mm |
| Mounting Hole Spacing | 1.811 in | 1.811 in |
| Operating Temperature [Max] | 40 °C | 40 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Power - Rated | 175.9 W | 134 - 175.9 W |
| RPM | 4000 RPM | 4000 RPM |
| Size / Dimension [diameter] | 57 mm | 57 mm |
| Size / Dimension [diameter] | 2.244 in | 2.244 in |
| Termination Style | Wire Leads | Wire Leads |
| Torque - Max Momentary (oz-in / mNm) | - | 138.8 oz-in |
| Torque - Max Momentary (oz-in / mNm) | - | 980 mNm |
| Torque - Rated (oz-in / mNm) | 59.48 oz-in | 45.32 - 59.48 oz-in |
| Torque - Rated (oz-in / mNm) | 420 mNm | 320 - 420 mNm |
| Type | DC Motor | DC Motor |
| Voltage - Rated | 36 VDC | 36 VDC |
| Weight | 2.8 lbs | 2.3 - 2.8 lbs |
| Weight | 1.3 kg | 1 - 1.3 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 186.86 | |
| 1 | $ 185.17 | |||
| 5 | $ 170.18 | |||
| 5 | $ 171.72 | |||
| 10 | $ 165.59 | |||
| 10 | $ 164.10 | |||
| 25 | $ 159.84 | |||
| 25 | $ 159.84 | |||
QBL5704 Series
STANDARD MOTOR 4000 RPM 36V
| Part | Type | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Length - Shaft and Bearing | Length - Shaft and Bearing | Termination Style | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Function | Weight | Weight | Power - Rated | Size / Dimension [diameter] | Size / Dimension [diameter] | RPM | Motor Type | Mounting Hole Spacing | Mounting Hole Spacing | Voltage - Rated | Operating Temperature [Min] | Operating Temperature [Max] | Torque - Max Momentary (oz-in / mNm) | Torque - Max Momentary (oz-in / mNm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated QBL5704-94-04-032 | DC Motor | 320 mNm | 45.32 oz-in | 0.984 in | 25 mm | Wire Leads | 0.315 in | 8 mm | Standard | 1 kg | 2.3 lbs | 134 W | 57 mm | 2.244 in | 4000 RPM | Brushless (BLDC) | 46 mm | 1.811 in | 36 VDC | -20 C | 40 °C | 138.8 oz-in | 980 mNm |
Analog Devices Inc./Maxim Integrated QBL5704-116-04-042 | DC Motor | 420 mNm | 59.48 oz-in | 0.984 in | 25 mm | Wire Leads | 0.315 in | 8 mm | Standard | 1.3 kg | 2.8 lbs | 175.9 W | 57 mm | 2.244 in | 4000 RPM | Brushless (BLDC) | 46 mm | 1.811 in | 36 VDC | -20 C | 40 °C |
Description
General part information
QBL5704 Series
Brushless (BLDC) DC Motor Standard 4000 RPM 175.9W 36VDC
Documents
Technical documentation and resources
No documents available
