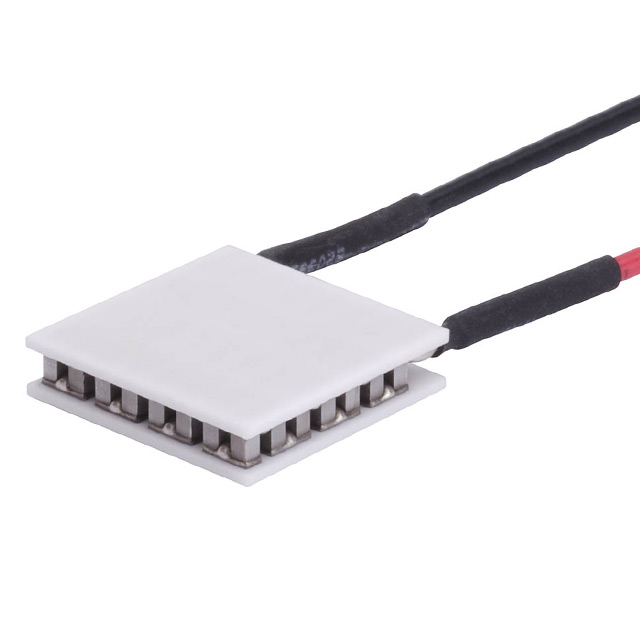

430801-504

Active

Laird Thermal Systems, Inc.

PELTIER MOD CP10,31,05,L1,W4.5

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIER MOD CP10,31,05,L1,W4.5

Technical Specifications

Parameters and characteristics for this part

Part	Delta Tmax @ Th	Operating Temperature	Voltage - Max [Max]	Height [z]	Current - Max [Max]	Qmax @ Th	Features	Number of Stages	Size / Dimension [y]	Size / Dimension [x]	Resistance
Laird Thermal Systems, Inc. 430801-510	67 °C	80 °C	3.8 V	3.2 mm	3.9 A	8.2 W	Lead Wires Sealed - Silicone RTV	1	12.3 mm	12.3 mm	820 mOhms
Laird Thermal Systems, Inc. 430801-504	67 °C	80 °C	3.8 V	3.2 mm	3.9 A	8.2 W	Lead Wires Non-Sealed	1	15 mm	15 mm	820 mOhms
Laird Thermal Systems, Inc. 430801-501	67 °C	80 °C	3.8 V	3.2 mm	3.9 A	8.2 W	Lead Wires Sealed - Epoxy	1	15 mm	15 mm	820 mOhms
