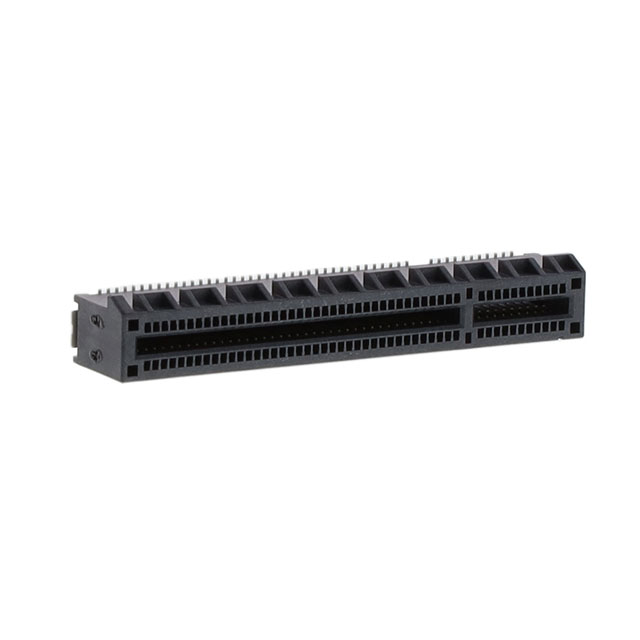

10146070-112Y1LF

Active

Amphenol ICC (FCI)

CONN PCI EXP FMALE 98POS 0.039

Deep-Dive with AI

DocumentsDatasheet 10150775-113Y0LF +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10146070-112Y1LF

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	PCI Express™
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Features	Solder Retention, Board Guide, Pick and Place Cap, Locking Ramp, GEN5
Gender	Female
Material - Insulation	Polyamide (PA), Glass Filled, Nylon
Mounting Type	Surface Mount
Number of Positions	98
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

10146070 Series

Part	Contact Material	Color	Read Out	Contact Finish Thickness	Contact Finish Thickness	Card Thickness	Card Thickness	Card Type	Features	Gender	Pitch [x]	Pitch [x]	Mounting Type	Termination Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Number of Positions	Number of Rows	Material - Insulation	Termination
Amphenol ICC (FCI) 10146070-112Y1LF	Copper Alloy	Black	Dual	0.76 Ám	30 Áin	0.062 in	1.57 mm	PCI Express™	Board Guide GEN5 Locking Ramp Pick and Place Cap Solder Retention	Female	0.039 in	1 mm	Surface Mount	2	105 ░C	-55 °C	Gold	98	2	Glass Filled Nylon Polyamide (PA)	Solder
Amphenol ICC (FCI) 10146070-113A0LF	Copper Alloy	Black	Dual	0.76 Ám	30 Áin	0.062 in	1.57 mm	PCI Express™	Board Guide GEN5 Locking Ramp	Female	0.039 in	1 mm	Surface Mount	2	105 ░C	-55 °C	Gold	164	2		Solder
Amphenol ICC (FCI) 10146070-112Y0LF	Copper Alloy	Black	Dual	0.38 µm	15 µin	0.062 in	1.57 mm	PCI Express™	Board Guide GEN5 Locking Ramp	Female	0.039 in	1 mm	Surface Mount	2	105 ░C	-55 °C	Gold	98	2		Solder
Amphenol ICC (FCI) 10146070-122Y0LF	Copper Alloy	Black	Dual	0.38 µm	15 µin	0.062 in	1.57 mm	PCI Express™	Board Guide GEN5 Locking Ramp	Female	0.039 in	1 mm	Surface Mount	2	105 ░C	-55 °C	Gold	98	2		Solder
Amphenol ICC (FCI) 10146070-113X0LF	Copper Alloy	Black	Dual	0.76 Ám	30 Áin	0.062 in	1.57 mm	PCI Express™	Board Guide GEN5 Locking Ramp	Female	0.039 in	1 mm	Surface Mount	2	105 ░C	-55 °C	Gold	164	2		Solder
Amphenol ICC (FCI) 10146070-123Y0LF	Copper Alloy	Black	Dual	0.38 µm	15 µin	0.062 in	1.57 mm	PCI Express™	Board Guide GEN5 Locking Ramp	Female	0.039 in	1 mm	Surface Mount	2	105 ░C	-55 °C	Gold	164	2		Solder
Amphenol ICC (FCI) 10146070-110T0LF	Copper Alloy	Black	Dual	0.76 Ám	30 Áin	0.062 in	1.57 mm	PCI Express™	Board Guide GEN5 Locking Ramp	Female	0.039 in	1 mm	Surface Mount	2			Gold	36	2		Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.56
		10	$ 6.21
		25	$ 4.12

Description

General part information

10146070 Series

98 Position Female Connector PCI Express™ Gold 0.039" (1.00mm) Black
