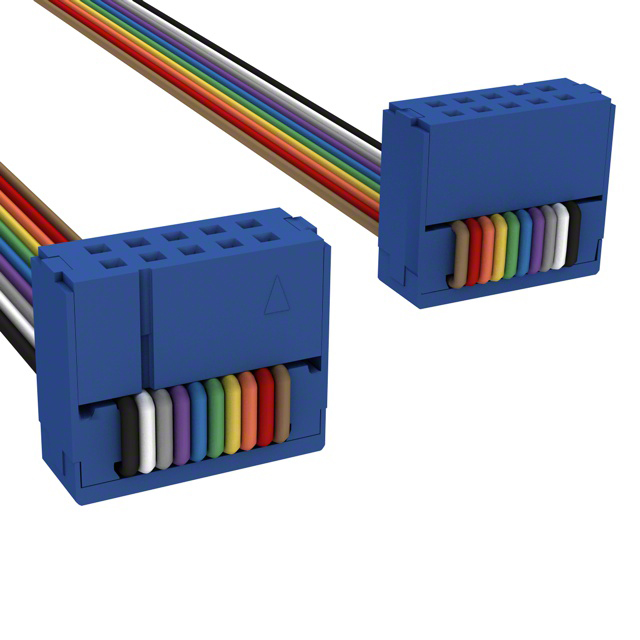

C3BBS-1006M

Active

CW Industries

IDC CABLE - CSR10S/AE10M/CSR10S

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C3BBS-1006M

Active

CW Industries

IDC CABLE - CSR10S/AE10M/CSR10S

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C3BBS-1006M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Socket
Contact Finish	Tin
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Features	Strain Relief
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	10
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

C3BBS-1 Series

Part	Pitch - Connector	Pitch - Connector	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Features	Connector Type	Pitch - Cable	Pitch - Cable	Color	Length [x]	Length [x]	Number of Positions	Number of Rows	Shielding	Number of Positions	Length	Length	Length
CW Industries C3BBS-1418M	0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Tin	Strain Relief	Socket to Socket	0.05 "	1.27 mm	Multiple Ribbon	457.2 mm	1.5 ft	14	2	Unshielded
CW Industries C3BBS-1018G	0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Tin	Strain Relief	Socket to Socket	0.05 "	1.27 mm		457.2 mm	1.5 ft	10	2	Unshielded
CW Industries C3BBS-1036M	0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Tin	Strain Relief	Socket to Socket	0.05 "	1.27 mm	Multiple Ribbon	914.4 mm	3 ft	10	2	Unshielded
CW Industries C3BBS-1606M	0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Tin	Strain Relief	Socket to Socket	0.05 "	1.27 mm	Multiple Ribbon				2	Unshielded	16	152.4 mm	6 "	0.5 '
CW Industries C3BBS-1436G	0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Tin	Strain Relief	Socket to Socket	0.05 "	1.27 mm		914.4 mm	3 ft	14	2	Unshielded
CW Industries C3BBS-1018M	0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Tin	Strain Relief	Socket to Socket	0.05 "	1.27 mm	Multiple Ribbon	457.2 mm	1.5 ft	10	2	Unshielded
CW Industries C3BBS-1006M	0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Tin	Strain Relief	Socket to Socket	0.05 "	1.27 mm	Multiple Ribbon			10	2	Unshielded		152.4 mm	6 "	0.5 '
CW Industries C3BBS-1036G	0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Tin	Strain Relief	Socket to Socket	0.05 "	1.27 mm		914.4 mm	3 ft	10	2	Unshielded
CW Industries C3BBS-1636M	0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Tin	Strain Relief	Socket to Socket	0.05 "	1.27 mm	Multiple Ribbon	914.4 mm	3 ft		2	Unshielded	16
CW Industries C3BBS-1406G	0.1 in	2.54 mm	IDC	2.54 µm	100 µin	Tin	Strain Relief	Socket to Socket	0.05 "	1.27 mm				14	2	Unshielded		152.4 mm	6 "	0.5 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.04
		10	$ 7.71
		25	$ 6.96
		50	$ 6.46
		100	$ 6.00
		250	$ 5.46
		500	$ 5.09
		1000	$ 4.76
LCSC	Piece	1	$ 0.86

Description

General part information

C3BBS-1 Series

10 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")

Documents

Technical documentation and resources
