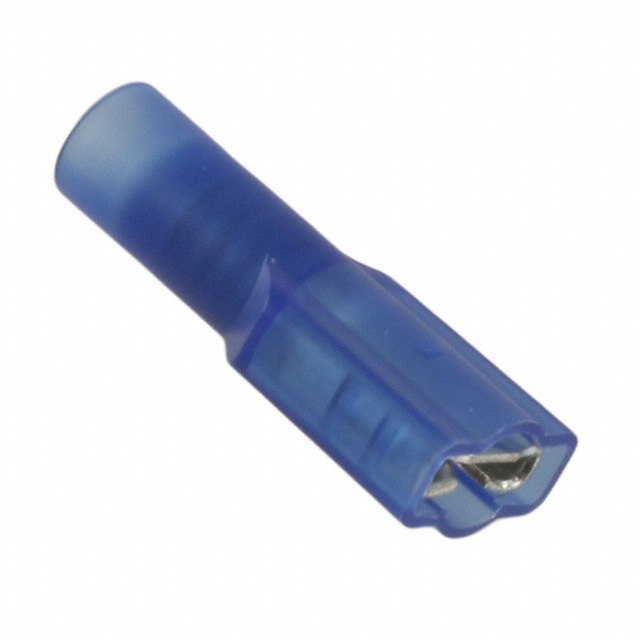

FDI14-250C

Active

CONN QC RCPT 14-16AWG 0.250

Search across all available documentation for this part.

Active

CONN QC RCPT 14-16AWG 0.250

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FDI14-250C	FDI14 Series

Color	Blue	Blue
Contact Finish	Tin	Tin
Contact Material	Brass	Brass
Features	Butted Seam	Butted Seam
Gender	Female	Female
Insulation	Fully Insulated	Fully Insulated
Insulation Diameter	3.68 mm	3.68 mm
Insulation Diameter [diameter]	0.145 "	0.145 "
Length - Overall [x]	22.1 mm	20.57 - 22.1 mm
Length - Overall [x]	0.87 in	0.81 - 0.87 in
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tab Thickness	0.032 in	0.02 - 0.032 in
Tab Thickness	0.81 mm	0.51 - 0.81 mm
Tab Width	6.35 mm	4.75 - 6.35 mm
Tab Width	0.25 in	0.187 - 0.25 in
Terminal Type	Standard	Standard
Termination	Crimp	Crimp

CONN QC RCPT 14-16AWG 0.250

Part	Contact Finish	Tab Thickness	Tab Thickness	Contact Material	Insulation	Length - Overall [x]	Length - Overall [x]	Insulation Diameter	Insulation Diameter [diameter]	Mounting Type	Termination	Tab Width	Tab Width	Features	Gender	Terminal Type	Color
3M FDI14-250C	Tin	0.032 in	0.81 mm	Brass	Fully Insulated	22.1 mm	0.87 in	3.68 mm	0.145 "	Free Hanging (In-Line)	Crimp	6.35 mm	0.25 in	Butted Seam	Female	Standard	Blue
3M FDI14-187Q	Tin	0.02 "	0.51 mm	Brass	Fully Insulated	20.57 mm	0.81 in	3.68 mm	0.145 "	Free Hanging (In-Line)	Crimp	4.75 mm	0.187 in	Butted Seam	Female	Standard	Blue

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

0.250" (6.35mm) Quick Connect Female 14-16 AWG Crimp Connector Fully Insulated

Technical documentation and resources

No documents available
