2961503
ActivePhoenix Contact

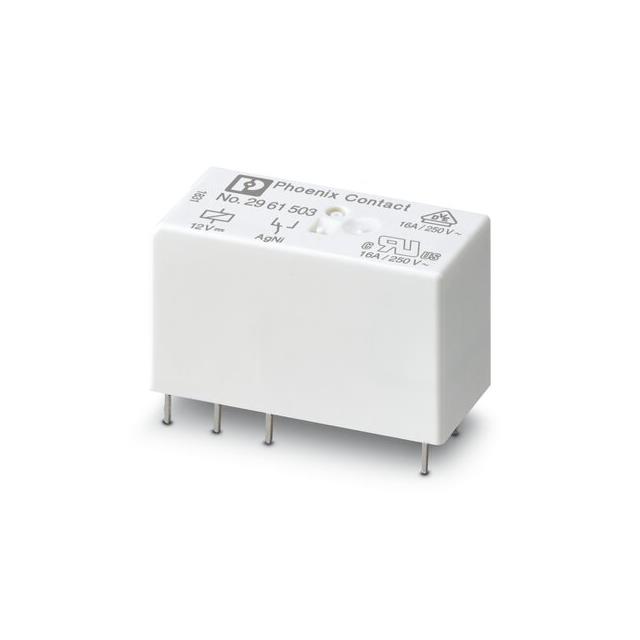

RELAY GEN PURPOSE SPDT 16A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2961503
ActivePhoenix Contact
RELAY GEN PURPOSE SPDT 16A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2961503 | 29615 Series |
|---|---|---|
| Approval Agency | cULus, EAC, UR | cULus, EAC, UR |
| Coil Current | 32 mA | 3 - 33 mA |
| Coil Resistance | 750 Ohms | 8.1 - 32500 Ohms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 24 VAC | 12 - 230 VAC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) | Silver Nickel (AgNi), Gold (Au) |
| Contact Rating (Current) | 16 A | 16 A |
| Mounting Type | Through Hole | Through Hole |
| Operate Time | 12 ms | 7 - 12 ms |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 9 ms | 3 - 9 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | PC Pin | PC Pin |
29615 Series
RELAY GEN PURPOSE SPDT 16A 230V
| Part | Relay Type | Release Time | Switching Voltage | Contact Material | Coil Voltage | Contact Form | Coil Current | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Rating (Current) | Operate Time | Approval Agency | Coil Type | Termination Style | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2961529 | General Purpose | 9 ms | 250 VAC, 250 VDC | Gold (Au), Silver Nickel (AgNi) | 230 VAC | SPDT (1 Form C) | 3 mA | 85 °C | -40 °C | Through Hole | 16 A | 12 ms | cULus, EAC, UR | Non Latching | PC Pin | 32500 Ohms |
Phoenix Contact 2961516 | General Purpose | 9 ms | 250 VAC, 250 VDC | Gold (Au), Silver Nickel (AgNi) | 120 VAC | SPDT (1 Form C) | 7 mA | 85 °C | -40 °C | Through Hole | 16 A | 12 ms | cULus, EAC, UR | Non Latching | PC Pin | 8.1 kOhms |
Phoenix Contact 2961561 | General Purpose | 3 ms | 250 VAC, 250 VDC | Gold (Au), Silver Nickel (AgNi) | 110 VDC | SPDT (1 Form C) | 4.1 mA | 85 °C | -40 °C | Through Hole | 16 A | 7 ms | cULus, EAC, UR | Non Latching | PC Pin | 26.6 kOhms |
Phoenix Contact 2961503 | General Purpose | 9 ms | 250 VAC, 250 VDC | Silver Nickel (AgNi) | 24 VAC | SPDT (1 Form C) | 32 mA | 85 °C | -40 °C | Through Hole | 16 A | 12 ms | cULus, EAC, UR | Non Latching | PC Pin | 750 Ohms |
Phoenix Contact 2961532 | General Purpose | 3 ms | 250 VAC, 250 VDC | Gold (Au), Silver Nickel (AgNi) | 12 VDC | SPDT (1 Form C) | 33 mA | 85 °C | -40 °C | Through Hole | 16 A | 7 ms | cULus, EAC, UR | Non Latching | PC Pin | 360 Ohms |
Phoenix Contact 2961545 | General Purpose | 3 ms | 250 VAC, 250 VDC | Gold (Au), Silver Nickel (AgNi) | 24 VDC | SPDT (1 Form C) | 17 mA | 85 °C | -40 °C | Through Hole | 16 A | 7 ms | cULus, EAC, UR | Non Latching | PC Pin | 1440 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 10.25 | |
Description
General part information
29615 Series
General Purpose Relay SPDT (1 Form C) 24VAC Coil Through Hole
