2961561

Active

Phoenix Contact

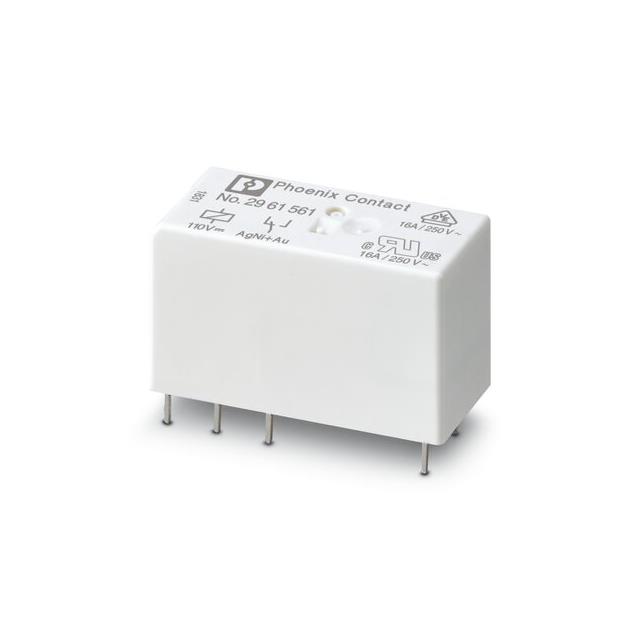

RELAY GEN PURPOSE SPDT 16A 110V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 16A 110V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 13.47

General part information

General Purpose Relay SPDT (1 Form C) 110VDC Coil Through Hole

Technical documentation and resources

Parameters and characteristics commom to parts in this series

RELAY GEN PURPOSE SPDT 16A 230V

Part	Relay Type	Release Time	Switching Voltage	Contact Material	Coil Voltage	Contact Form	Coil Current	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Rating (Current)	Operate Time	Approval Agency	Coil Type	Termination Style	Coil Resistance
Phoenix Contact 2961529	General Purpose	9 ms	250 VAC, 250 VDC	Gold (Au), Silver Nickel (AgNi)	230 VAC	SPDT (1 Form C)	3 mA	85 °C	-40 °C	Through Hole	16 A	12 ms	cULus, EAC, UR	Non Latching	PC Pin	32500 Ohms
Phoenix Contact 2961516	General Purpose	9 ms	250 VAC, 250 VDC	Gold (Au), Silver Nickel (AgNi)	120 VAC	SPDT (1 Form C)	7 mA	85 °C	-40 °C	Through Hole	16 A	12 ms	cULus, EAC, UR	Non Latching	PC Pin	8.1 kOhms
Phoenix Contact 2961561	General Purpose	3 ms	250 VAC, 250 VDC	Gold (Au), Silver Nickel (AgNi)	110 VDC	SPDT (1 Form C)	4.1 mA	85 °C	-40 °C	Through Hole	16 A	7 ms	cULus, EAC, UR	Non Latching	PC Pin	26.6 kOhms
Phoenix Contact 2961503	General Purpose	9 ms	250 VAC, 250 VDC	Silver Nickel (AgNi)	24 VAC	SPDT (1 Form C)	32 mA	85 °C	-40 °C	Through Hole	16 A	12 ms	cULus, EAC, UR	Non Latching	PC Pin	750 Ohms
Phoenix Contact 2961532	General Purpose	3 ms	250 VAC, 250 VDC	Gold (Au), Silver Nickel (AgNi)	12 VDC	SPDT (1 Form C)	33 mA	85 °C	-40 °C	Through Hole	16 A	7 ms	cULus, EAC, UR	Non Latching	PC Pin	360 Ohms
Phoenix Contact 2961545	General Purpose	3 ms	250 VAC, 250 VDC	Gold (Au), Silver Nickel (AgNi)	24 VDC	SPDT (1 Form C)	17 mA	85 °C	-40 °C	Through Hole	16 A	7 ms	cULus, EAC, UR	Non Latching	PC Pin	1440 Ohms
