1-770873-1

Active

TE Connectivity AMP Connectors

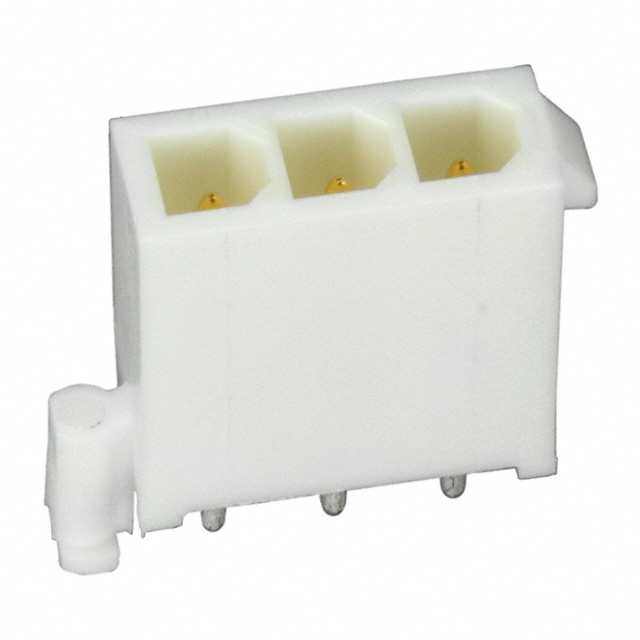

CONN HEADER VERT 3POS 4.14MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-770873-1

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 3POS 4.14MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-770873-1	770873 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	Gold	Tin-Lead, Gold
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	30 - 150 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 - 3.81 Ám
Contact Finish Thickness - Post	150 Áin	150 Áin
Contact Finish Thickness - Post	3.81 Ám	3.81 Ám
Contact Length - Post	4.45 mm	4.45 mm
Contact Length - Post	0.175 in	0.175 in
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	White	White
Insulation Height	13.5 mm	13.5 mm
Insulation Height	0.531 in	0.531 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	85 - 105 °C
Operating Temperature [Min]	-20 C	-20 C
Pitch - Mating	4.14 mm	4.14 mm
Pitch - Mating	0.163 in	0.163 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	600 VAC	600 VAC

770873 Series

CONN HEADER VERT 3POS 4.14MM

Part	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Fastening Type	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Finish - Post	Voltage Rating	Contact Type	Insulation Color	Number of Positions Loaded	Shrouding	Contact Length - Post	Contact Length - Post	Mounting Type	Style	Pitch - Mating	Pitch - Mating	Contact Shape	Current Rating (Amps)	Contact Finish - Mating	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Number of Rows	Insulation Material	Termination
TE Connectivity AMP Connectors 770873-1	85 °C	-20 C	Header	Locking Ramp	General Purpose	150 Áin	3.81 Ám	13.5 mm	0.531 in	Tin-Lead	600 VAC	Male Pin	White	All	Shrouded - 4 Wall	4.45 mm	0.175 in	Through Hole	Board to Cable/Wire	4.14 mm	0.163 in	Circular	Varies by Wire Gauge	Tin-Lead	UL94 V-0	150 Áin	3.81 Ám	Brass	1	Nylon, Polyamide (PA)	Solder
TE Connectivity AMP Connectors 770873-2	105 ░C	-20 C	Header	Locking Ramp	General Purpose	30 Áin	0.76 Ám	13.5 mm	0.531 in	Tin-Lead	600 VAC	Male Pin	White	All	Shrouded - 4 Wall	4.45 mm	0.175 in	Through Hole	Board to Cable/Wire	4.14 mm	0.163 in	Circular	Varies by Wire Gauge	Gold	UL94 V-0	150 Áin	3.81 Ám	Brass	1	Nylon, Polyamide (PA)	Solder
TE Connectivity AMP Connectors 1-770873-1	105 ░C	-20 C	Header	Locking Ramp	General Purpose	30 Áin	0.76 Ám	13.5 mm	0.531 in	Tin	600 VAC	Male Pin	White	All	Shrouded - 4 Wall	4.45 mm	0.175 in	Through Hole	Board to Cable/Wire	4.14 mm	0.163 in	Circular	Varies by Wire Gauge	Gold	UL94 V-0	150 Áin	3.81 Ám	Brass	1	Nylon, Polyamide (PA)	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.57
		10	$ 2.29
		200	$ 2.07
		600	$ 1.87
		1000	$ 1.67
		5000	$ 1.48

Description

General part information

770873 Series

Connector Header Through Hole 3 position 0.163" (4.14mm)
