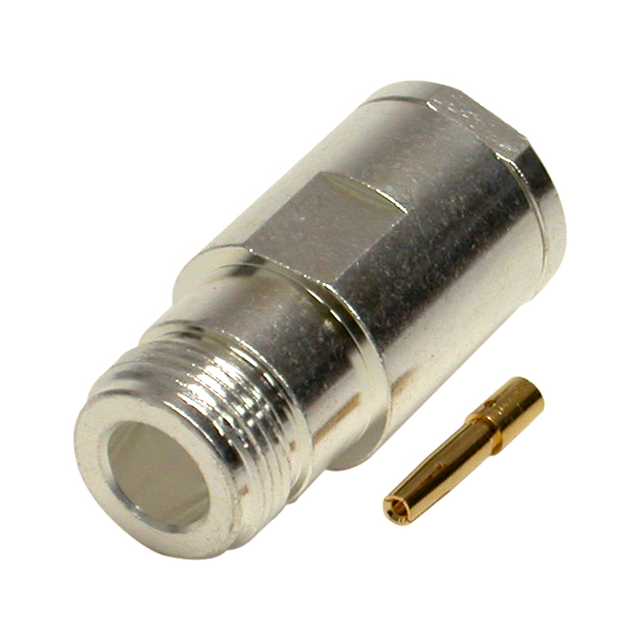

RFN-1024-1SI

Active

RF Industries

N FEMALE CRIMP; 50 OHMS

Search across all available documentation for this part.

Active

RF Industries

N FEMALE CRIMP; 50 OHMS

Technical Specifications

Parameters and characteristics for this part

Specification	RFN-1024-1SI

Body Finish	Silver
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	1000 VDC

Part	Contact Termination	Mounting Type	Body Finish	Shield Termination	Number of Ports	Connector Style	Impedance	Center Contact Material	Connector Type	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Voltage Rating	Frequency - Max [Max]	Dielectric Material	Body Material
RF Industries RFN-1024-1SI	Crimp Solder	Free Hanging (In-Line)	Silver	Clamp	1	N Type	50 Ohms	Phosphor Bronze	Female Socket Jack	Gold	-65 ░C	85 °C	Silver	1000 VDC	11 GHz	Polytetrafluoroethylene (PTFE)	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp or Solder
