200MSP1T2B1M7QE

Active

E-Switch

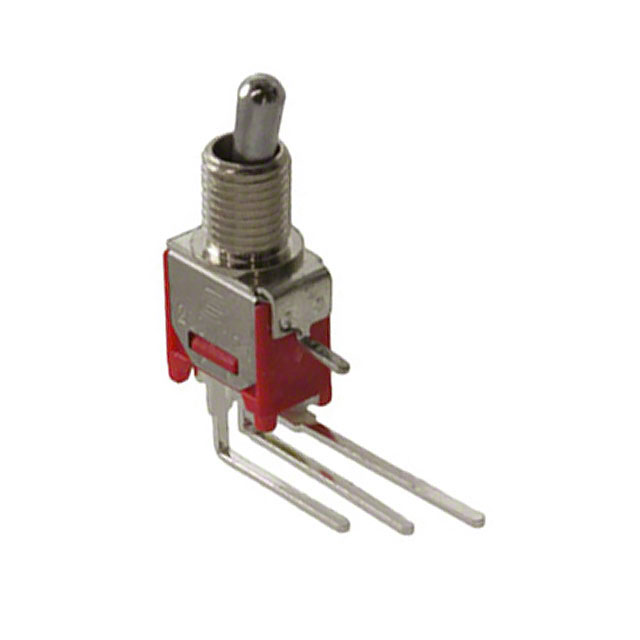

SWITCH TOGGLE SPDT 3A 120V

Deep-Dive with AI

Search across all available documentation for this part.

200MSP1T2B1M7QE

Active

E-Switch

SWITCH TOGGLE SPDT 3A 120V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.08
		10	$ 3.65
		25	$ 3.46
		50	$ 3.33
		100	$ 3.16
		270	$ 3.02
		540	$ 2.77
		1080	$ 2.65

Description

General part information

200MSP1 Series

Toggle Switch SPDT Panel Mount, Right Angle, Vertical

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	200MSP1T2B1M7QE	200MSP1 Series

Actuator Length [x]	5.33 mm	0.5 - 11.68 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	10-48	10-48, Unthreaded, 1/4-40
Circuit	SPDT	SPDT
Current Rating (Amps)	3 A	0.4 - 3 A
Electrical Life	30000 Cycles	30000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	Panel Mount, Right Angle, Vertical	Through Hole, Right Angle, Panel Mount, Right Angle, Vertical, Through Hole
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	4.95 mm	0.25 - 4.95 mm
Switch Function	On-On	On-On
Termination Style	PC Pin	Solder Lug, PC Pin, Wire Wrap
Voltage Rating - AC	120 V	20 - 120 V
Voltage Rating - DC	28 V	20 - 28 V

200MSP1 Series

SWITCH TOGGLE SPDT 3A 120V

Part	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Features	Switch Function	Circuit	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Bushing Thread	Illumination	Actuator Length [x]	Electrical Life	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Actuator Material	Mounting Type
E-Switch 200MSP1T2B1M1QEH	3 A	4.95 mm	Epoxy Sealed Terminals	On-On	SPDT	Solder Lug	-30 ░C	85 °C	10-48	Non-Illuminated	5.33 mm	30000 Cycles	120 V	28 V	Standard Round	Brass, Chrome Plated
E-Switch 200MSP1T2B4M6QE	3 A		Epoxy Sealed Terminals	On-On	SPDT	PC Pin	-30 ░C	85 °C	Unthreaded	Non-Illuminated	5.33 mm	30000 Cycles	120 V	28 V	Standard Round	Brass, Chrome Plated	Through Hole, Right Angle
E-Switch 200MSP1T4B1M2QEH	3 A	4.95 mm	Epoxy Sealed Terminals	On-On	SPDT	PC Pin	-30 ░C	85 °C	10-48	Non-Illuminated	0.5 in	30000 Cycles	120 V	28 V	Standard Round	Brass, Chrome Plated
E-Switch 200MSP1T1B1M1RE	0.4 VA	4.95 mm	Epoxy Sealed Terminals	On-On	SPDT	Solder Lug	-30 ░C	85 °C	10-48	Non-Illuminated	9.4 mm	30000 Cycles	20 V	20 V	Standard Round	Brass, Chrome Plated
E-Switch 200MSP1T2B1M7QE	3 A	4.95 mm	Epoxy Sealed Terminals	On-On	SPDT	PC Pin	-30 ░C	85 °C	10-48	Non-Illuminated	5.33 mm	30000 Cycles	120 V	28 V	Standard Round	Brass, Chrome Plated	Panel Mount, Right Angle, Vertical
E-Switch 200MSP1T2B3M7QE	3 A	4.95 mm	Epoxy Sealed Terminals	On-On	SPDT	PC Pin	-30 ░C	85 °C	10-48	Non-Illuminated	5.33 mm	30000 Cycles	120 V	28 V	Standard Round	Brass, Chrome Plated	Panel Mount, Right Angle, Vertical
E-Switch 200MSP1T2B2M6RE	0.4 VA		Epoxy Sealed Terminals	On-On	SPDT	PC Pin	-30 ░C	85 °C	Unthreaded	Non-Illuminated	5.33 mm	30000 Cycles	20 V	20 V	Standard Round	Brass, Chrome Plated	Through Hole, Right Angle
E-Switch 200MSP1T3B3M7QEH	3 A	4.95 mm	Epoxy Sealed Terminals	On-On	SPDT	PC Pin	-30 ░C	85 °C	10-48	Non-Illuminated		30000 Cycles	120 V	28 V	Standard Round	Brass, Chrome Plated	Panel Mount, Right Angle, Vertical
E-Switch 200MSP1T2B2M7RE	0.4 VA		Epoxy Sealed Terminals	On-On	SPDT	PC Pin	-30 ░C	85 °C	Unthreaded	Non-Illuminated	5.33 mm	30000 Cycles	20 V	20 V	Standard Round	Brass, Chrome Plated	Right Angle, Through Hole, Vertical
E-Switch 200MSP1T5B1M2QE	3 A	4.95 mm	Epoxy Sealed Terminals	On-On	SPDT	PC Pin	-30 ░C	85 °C	10-48	Non-Illuminated	7.88 mm	30000 Cycles	120 V	28 V	Standard Round	Brass, Chrome Plated
